Telehandler · Bobcat

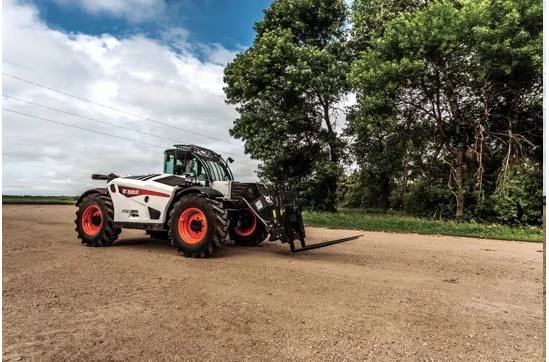

Bobcat TL723 Specs
Quick-reference specifications for the Bobcat TL723 telehandler, compiled from published specifications.
- Rated Capacity
- 7,718 lb3,499 kg
- Operating Weight
- 16,163 lb7,330 kg
Performance 7 specs
| Rated Capacity | 7,718 lb (3,499 kg) |
|---|---|
| Max Lift Height | 274 in (6,960 mm) |
| Max Reach | 157.6 in (4,003 mm) |
| Travel Speed – High | 24.8 mph (39.9 km/h) |
| Travel Speed – Low | 3.7 mph (6.0 km/h) |
| Boom Breakout Force | 8,093 lbf |
| Turning Radius (outside) | 197.4 in |
Dimensions 9 specs
| Overall Length | 239.1 in (6,075 mm) |
|---|---|
| Fork Heel to Rear | 191.9 in (4,874 mm) |
| Overall Width | 90.6 in (2,300 mm) |
| Overall Height (with cab) | 96.7 in (2,456 mm) |
| Cab Height with Beacon | 101.9 in (2,588 mm) |
| Wheelbase | 113 in (2,870 mm) |
| Turning Radius (inside) | 43 in |
| Underclearance at Wheelbase | 16.9 in |
| Tread Width (Front/Rear) | 74.6 in |
Weight 1 spec
| Operating Weight | 16,163 lb (7,330 kg) |
|---|
Power / Engine 6 specs
| Engine Make/Model | Bobcat D34 Turbocharged |
|---|---|
| Horsepower | 100 hp @ 2,400 rpm |
| Displacement | 207.5 cu in (3.4 L) |
| Torque | 316.7 ft-lb @ 1,600 rpm |
| Cylinders | 4 |
| Fuel Tank Capacity | 36.4 gal (137.8 L) |
Hydraulics / Fluids 3 specs
| Auxiliary Hydraulic Pressure | 3,626 psi |
|---|---|
| Auxiliary Hydraulic Flow | 26.4 gal/min |
| Load Center | 24 in |
