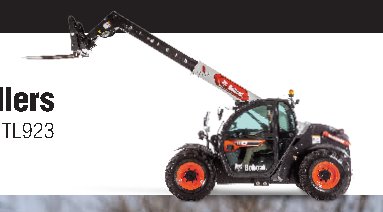

Bobcat TL923 Specs
Quick-reference specifications for the Bobcat TL923 telehandler, taken from the manufacturer’s spec sheet.
- Max. Rated Capacity
- 9041 lb4100 kg
- Operating Weight
- 18,158 lb8235 kg
Performance 8 specs
| Max. Rated Capacity | 9041 lb (4100 kg) |
|---|---|
| Max. Rated Capacity at Full Height | 7056 lb (3200 kg) |
| Max. Rated Capacity at Full Reach | 3749 lb (1700 kg) |
| Max. Reach | 158.3 in (4022 mm) |
| Reach at Max. Height (24″ load center) | 53.7 in (1364 mm) |
| Reach at Dump Height | 46.3 in (1175 mm) |
| Rated rpm | 2400 rpm |
| Four Wheel Drive | 2-Speed Hydrostatic Transmission |
Dimensions 11 specs
| Lift Height | 276.9 in (7034 mm) |
|---|---|
| Tires | 400/80 x 24 |
| Length Fork Face to Rear | 195.9 in (4975 mm) |
| Length Front Tire to Rear | 167.6 in (4256 mm) |
| Wheelbase | 113.0 in (2870 mm) |
| Ground Clearance | 16.9 in (430 mm) |
| Cab Height | 96.7 in (2457 mm) |
| Cab Height With Beacon | 100.8 in (2561 mm) |
| Width | 90.6 in (2300 mm) |
| Inside Turning Clearance | 43.0 in (1092 mm) |
| Fork Turning Clearance | 195.4 in (4962 mm) |
Weight 1 spec
| Operating Weight | 18,158 lb (8235 kg) |
|---|
Power / Engine 3 specs
| Horsepower | 135.0 hp (100.7 kW) |
|---|---|
| Torque at 1400 rpm | 368.3 ft.-lb (500 Nm) |
| Displacement | 207.5 cu. in (3.4 L) |
Hydraulics / Fluids 3 specs
| Auxiliary Hydraulic Flow | 39.6 gpm (150.0 L/min.) |
|---|---|
| Hydraulic Pressure | 3698 psi (255 bar) |
| Full Tank Capacity | 36.4 gal (138.0 L) |
