Forklift · Caterpillar

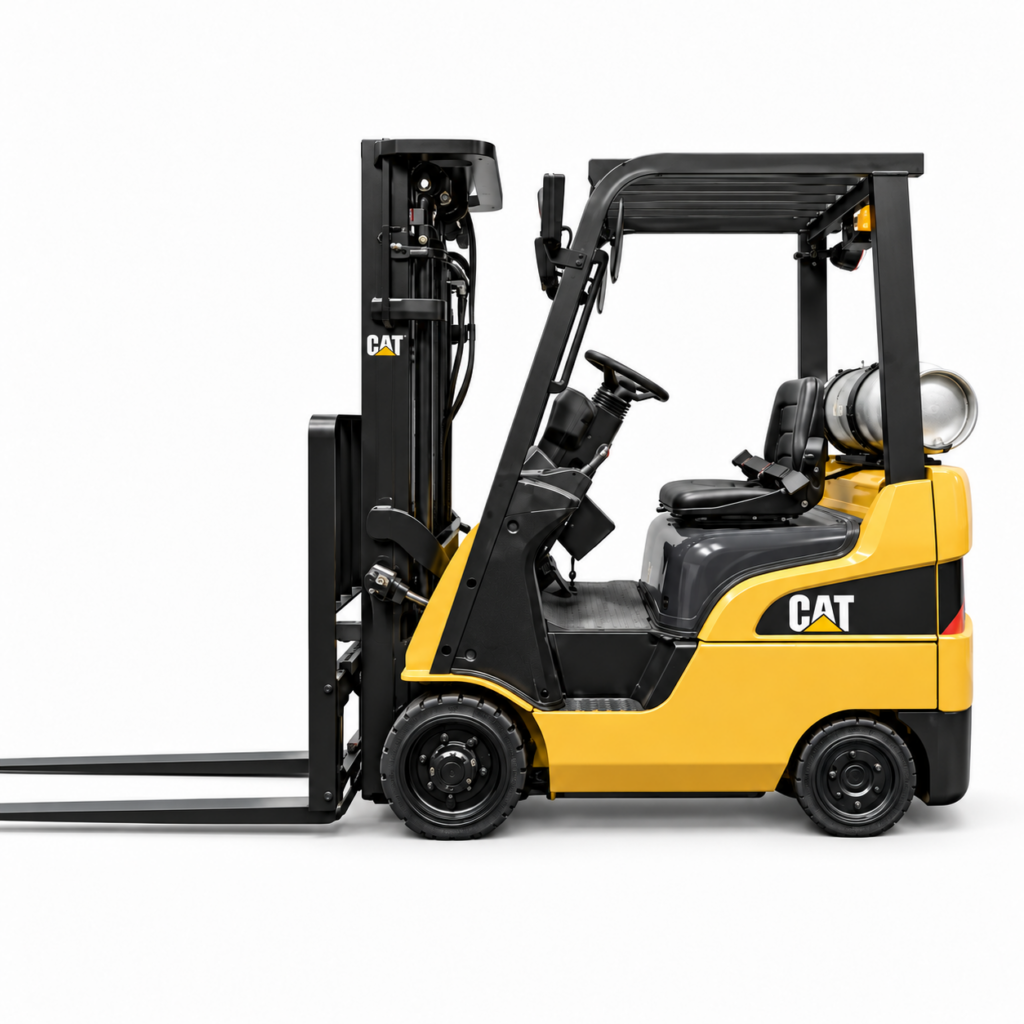

Caterpillar 2C3000 Specs
Quick-reference specifications for the Caterpillar 2C3000 forklift, compiled from published specifications.
- Operating Weight
- 6,040 lb2.74 t
Performance 11 specs
| Basic Capacity | 3,000 lb (1,361 kg) |
|---|---|
| Load Center | 24 in (610 mm) |
| Max Speed | 10.2 mph (16.4 km/h) |
| Turning Radius | 70 in (1.78 m) |
| Tilt Forward | 5.0 degrees |
| Tilt Backward | 10.0 degrees |
| Travel Speed with Load | 15.5 km/h |
| Travel Speed without Load | 16.5 km/h |
| Lift Speed with Load | 0.62 m/s |
| Lift Speed without Load | 0.63 m/s |
| Lower Speed with Load | 0.5 m/s |
Dimensions 6 specs
| Length to Fork Face | 82 in (2.08 m) |
|---|---|
| Overall Width (Standard Tires) | 38.0 in (0.97 m) |
| Height to Top of Overhead Guard | 81.0 in (2.06 m) |
| Overall Height – Mast Lowered | 82.8 in (2.10 m) |
| Wheelbase | 47.0 in (1.19 m) |
| Lifting Height (Euro specs) | 10.91 ft (3.33 m) |
Weight 2 specs
| Operating Weight | 6,040 lb (2.74 t) |
|---|---|
| Weight (Alt Source) | 6,065 lb (2,750 kg) |
Power / Engine 4 specs
| Engine Power | 50 hp (37.4 kW) |
|---|---|
| Engine Displacement | 128.2 cu in (2.1 L) |
| Max Torque | 111 lbf-ft (151 Nm) |
| Cylinders | 4 |
Hydraulics / Fluids 2 specs
| Front Tire Size | 18.0 x 6.0 x 12.125 in |
|---|---|
| Rear Tire Size | 14.0 x 5.0 x 10.0 in |
