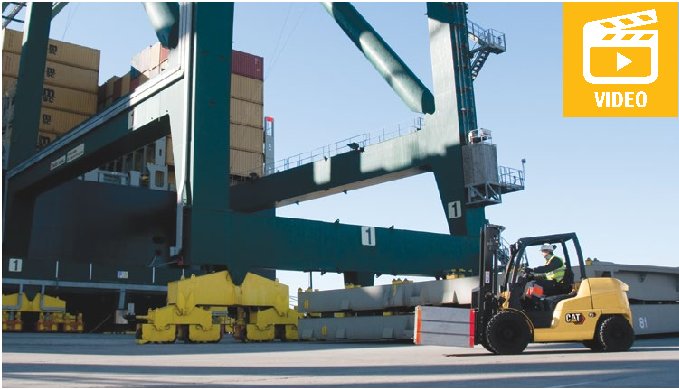

- Caterpillar DP50CN
Forklift · Caterpillar
Caterpillar DP50CN Specs
Quick-reference specifications for the Caterpillar DP50CN forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 132 in3.35 m
- Gradeability – Full Load
- 20.9%
Performance 9 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity | 10,000 lb (4,536 kg) |
| Load Center Distance | 24 in (610 mm) |
| Travel Speed – Full Load (Forward/Reverse) | 13.0 mph (20.9 km/h) |
| Lifting Speed – Full Load | 102 fpm (0.52 m/s) |
| Lowering Speed – Full Load | 98 fpm (0.50 m/s) |
| Turning Radius (outside) | 109 in (2.77 m) |
| Gradeability – Full Load | 20.9% |
| Maximum Lift Height | 132 in (3.35 m) |
Dimensions 10 specs
| Fork carriage to DIN | 15 173 A / B / no |
|---|---|
| Overall Width – Standard Tires | 55.7 in (1.41 m) |
| Overall Width – Optional Duals | 77.4 in (1.97 m) |
| Length to Fork Face | 125 in (3.18 m) |
| Mast Lowered Height | 94.5 in (2.40 m) |
| Overhead Guard Height | 90.5 in (2.30 m) |
| Wheelbase | 78.7 in (2.00 m) |
| Fork Spread (Outside) – Min/Max | 12.6 in / 46.6 in (0.32 m / 1.18 m) |
| ForkDimensions(T×W×L) | 2 × 5.9 × 48 in (0.05 × 0.15 × 1.22 m) |
| Mast Tilt Range (forward/backward) | 6/10 degrees |
Weight 1 spec
| Total Weight (Without Battery) | 16,270 lb (7,380 kg) |
|---|
Power / Engine 3 specs
| Engine Manufacturer/Type | Mitsubishi 4EGT |
|---|---|
| Rated Horsepower @ RPM (SAE) | 72 hp @ 2,250 rpm |
| Rated Torque @ RPM (SAE) | 191.76 lb-ft @ 1,800 rpm (260 N·m @ 1,700 rpm) |
Hydraulics / Fluids 1 spec
| Battery Voltage | 12 V |
|---|
