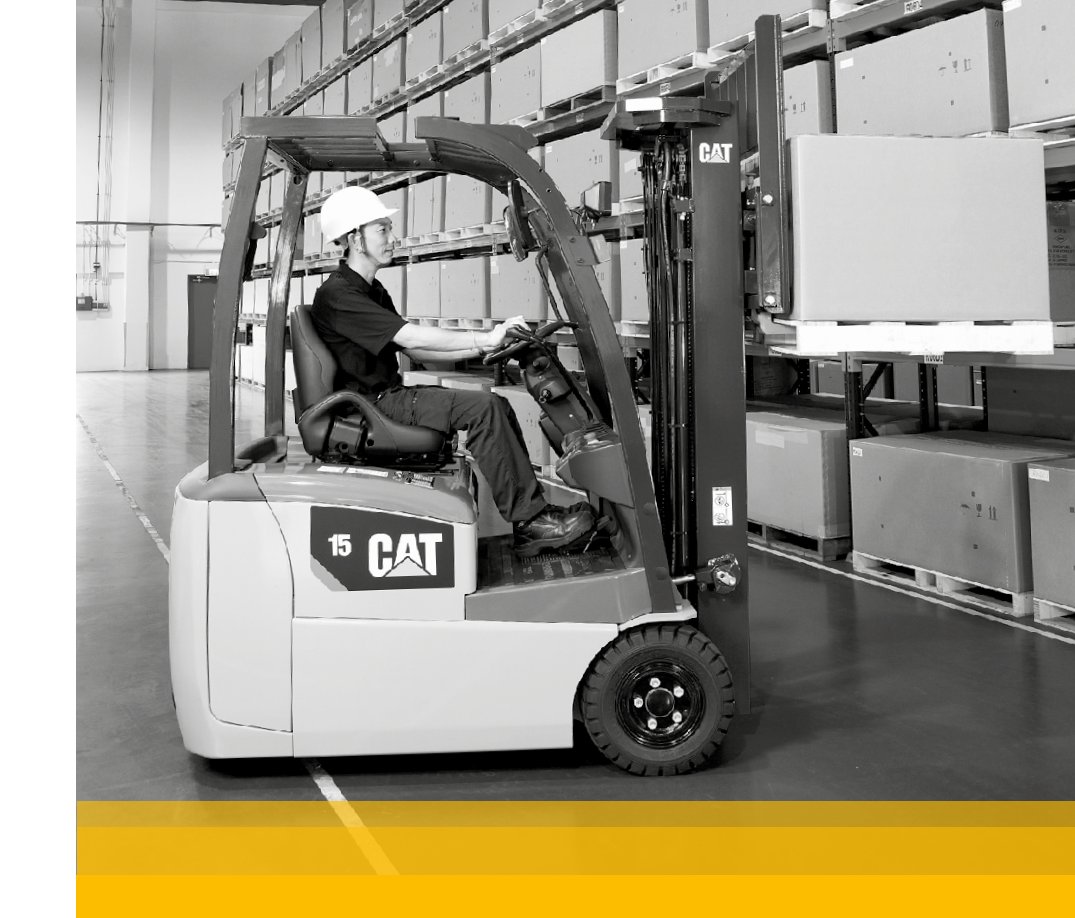

Caterpillar EP18T Specs

Quick-reference specifications for the Caterpillar EP18T forklift, taken from the manufacturer’s spec sheet.

Performance 14 specs

Load capacity Q	1800 kg
Load centre distance c	500 mm
Mast tilt, forwards/backwards ∂/ß	5 / 7.5 °
Minimum distance between centres of rotation b	0 mm
Travel speed, with/without load	14.5 / 16 km/h
Lifting speed, with/without load	0,36 / 0,61 m/s
Lowering speed, with/without load	0.55 / 0.50 m/s
Gradeability, with/without load	4.5/8.5 %
Maximum gradeability, with/without load	15/20 %
Acceleration time (10 metres) with/without load	4.7/4.1 s
Service brakes	Hydraulic
Lift motor output at 15% duty factor	9,5 kW
Type of drive control	FET
Noise level, value at operator’s ear	< 75 dB (A)

Wheelbase y	1415 mm
Tyre dimensions, front	18×7-8-16PR
Tyre dimensions, rear	16×6-8-10PR
Track width (centre of tyres), front b	920 mm
Track width (centre of tyres), rear b	230 mm
Height with mast lowered h	1975 mm
Free lift h	115 mm
Lift height h	3000 mm
Overall height with mast raised h	4015 mm
Height to top of overhead guard h	2050 mm
Seat height h	955 mm
Tow coupling height h	575 mm
Overall length l	3105 mm
Length to fork face l	2035 mm
Overall width b1/b	1090 mm
Fork dimensions s,e,l	35x100x1070 mm
Fork carriage to DIN 15 173	2A
Fork carriage width b	920 mm
Ground clearance at centre of wheelbase, with load m	85 mm
Turning circle radius Wa	1660 mm

Axle loading with maximum load, front/rear	4155/515 kg
Axle loading without load, front/rear	1245/1625 kg

Power source	Electric
Truck weight, without load / including battery	2870 kg
Battery voltage/capacity at 5-hour discharge	48 V / 390 Ah
Battery weight	650 kg

Operating pressure for attachments	157 bar
Oil flow for attachments	60 l/min
