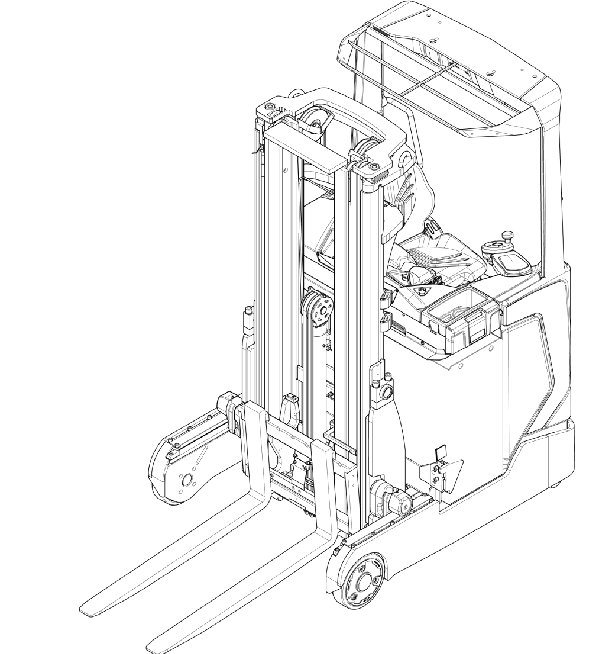

Caterpillar NR25N2X Specs

Quick-reference specifications for the Caterpillar NR25N2X forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Performance 2 specs

Tilt of fork carriage, forward / backward	2 / 4 [ ]
Reach distance l	572 [mm]

Dimensions 18 specs

Track width, rear b	1,310 [mm]
Height, mast lowered h	3,785 [mm]
Free lift h	3,135 [mm]
Lift h	9,000 [mm]
Height, mast extended h	9,830 [mm]
Height of overhead guard h	2,200 [mm]
Seat height related to SIP h	1,040 [mm]
Fork height, lowered h	85 [mm]
Overall length l	2,496 [mm]
Length to face of forks l	1,346 [mm]
Overall width b1/b	1,440 [mm]
Fork dimensions DIN ISO 2331 s/e/l	50 / 100 / 1,150 [mm]
Fork carriage ISO 2328 class/type A, B	2A
Fork carriage width b	720 [mm]
Distance between fork arms b	315 – 710 [mm]
Ground clearance, center of wheel base m	75 [mm]
Aisle width for pallets 1,000×1,200 mm, crossways Ast	2,805 [mm]
Aisle width for pallets 800×1,200mm, lengthwise Ast	2,853 [mm]
