Forklift · Crown

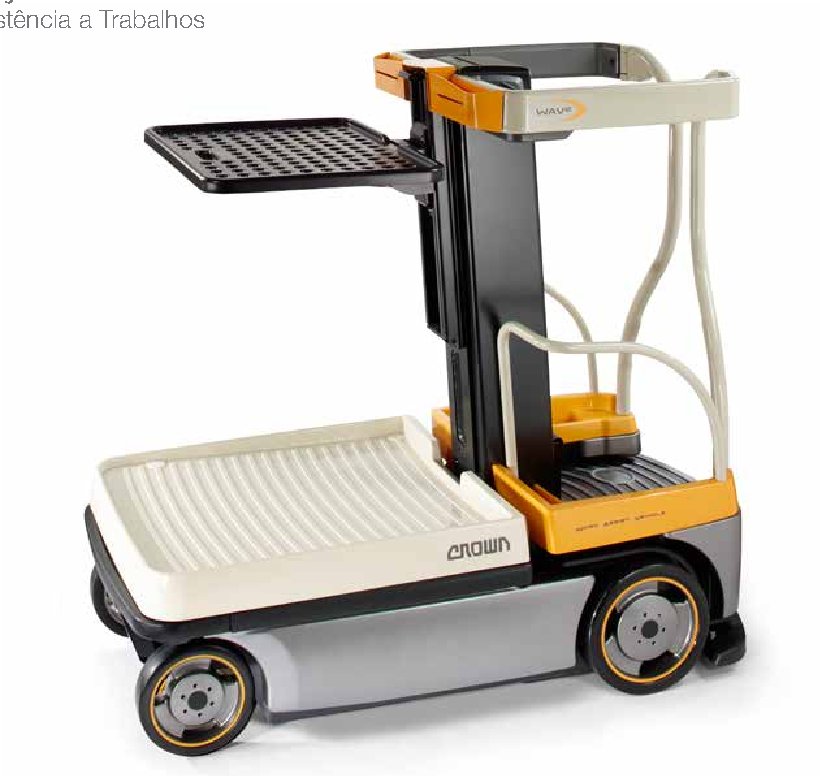

Crown WAV60-118 Specs
Quick-reference specifications for the Crown WAV60-118 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 118 in2,995 mm
- Platform Height
- 118 in
- Working Height
- 195 in4,945 mm
Performance 9 specs
| Maximum Lift Height | 118 in (2,995 mm) |
|---|---|
| Working Height | 195 in (4,945 mm) |
| Reach Height | 17 ft (5,000 mm) |
| Travel Speed (Full Load) | 5 mph / 2 mph reverse (8 km/h) |
| Travel Speed (No Load) | 3 mph / 2 mph reverse |
| Lifting Speed (Full Load) | 60 fpm (0.30 m/s) |
| Lowering Speed (Full Load) | 45 fpm (0.25 m/s) |
| Turning Radius (Outside) | 47.5 in (1,205 mm) |
| Empty Travel Speed | 5.0 mph |
Dimensions 7 specs
| Platform Height | 118 in |
|---|---|
| Collapsed Height | 54.5 in (1,400 mm) |
| Overall Extended Height | 160.5 in (4,090 mm) |
| Overall Length | 60 in (1,525 mm) |
| Overall Width (Standard) | 29.5 in (750 mm) |
| Overall Width (With Rail Guide Rollers) | 35 in (890 mm) |
| Platform Step Height | 12 in (305 mm) |
Weight 1 spec
| Total Weight (With Battery) | 1,420 lb (645 kg) |
|---|
Power / Engine 1 spec
| Power System | 24 volt electric |
|---|
Hydraulics / Fluids 3 specs
| Load Tray Capacity | 200 lb (90 kg) |
|---|---|
| Operator Compartment Capacity | 300 lb (135 kg) |
| Load Deck Capacity | 250 lb (115 kg) |
