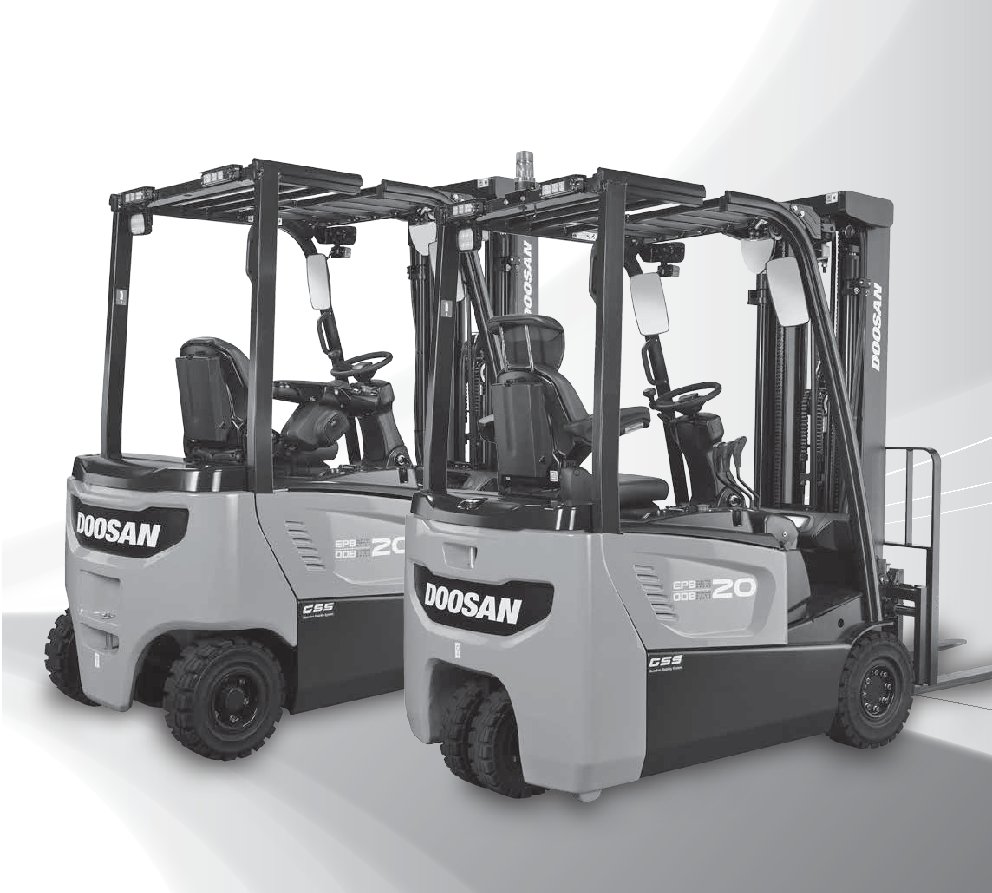

Doosan B15T-7 Specs

Quick-reference specifications for the Doosan B15T-7 forklift, taken from the manufacturer’s spec sheet.

Performance 6 specs

Load Capacity at rated load center	1,500 kg
Tilt of Mast – Forward / Backward	5/7 deg
Outer Turning Radius	1,515 mm
Speed – Travel Loaded / Unloaded	17/17 km/h
Lifting – Loaded / Unloaded	400/600 mm/s
Max. Drawbar pull – Loaded at 1.6 km/h	1300 kg

Load Center	500 mm
Tire type	E/C
Max. Fork Height with STD 2-stage mast	3,300 mm
Free Lift	130 mm
Forks – Thickness x Width x Length	35 x 100 x 900 mm
Fork Spacing (min. x max.)	240 x 905 mm
Overall Dimensions – Length to Fork Face	1,891 mm
Overall Width	1,090 mm
Mast Lowered Height	2,150 mm
Mast Extended Height	4,345 mm
Overhead Guard Height	2,010 mm
Seat Height	919 mm
Tires – Size Front	18×7-8
Tires – Size Rear	15×4.5-8
Tread Width – Front	902 mm
Tread Width – Rear	167 mm
Ground clearance – Loaded at lowest	86 mm
Ground clearance – at center of wheel base	100 mm
Brakes – Service	hydraulic
Brakes – Parking	auto-electric

Axle Load – Loaded, Front / Rear	3988/540 kg
Axle Load – Unloaded, Front / Rear	1495/1533 kg

Power type	AC Electric
Total weight with min. weight of battery	3028 kg
Battery – Type	lead-acid
Battery – Voltage	48 V
Battery – Capacity (5 Hours Rating) Normal BS type	460 AH
Battery – Capacity (5 Hours Rating) Normal DIN type	460 AH
Battery – Capacity (5 Hours Rating) Max. BS type	500 AH
Battery – Capacity (5 Hours Rating) Max. DIN type	500 AH
Battery – Min. Weight	700 kg
Electric Motors – Drive motor rating at S2 60 minute	6.0 x 2 kW
Electric Motors – Lifting motor rating at S3 15%	14 kW

Control Type – Drive and Hydraulic type	MOSFET inverter
Drive Axle Brake type	ODB
Relief Pressure – System	17,600 kpa
Relief Pressure – Attachment	14,000 kpa
