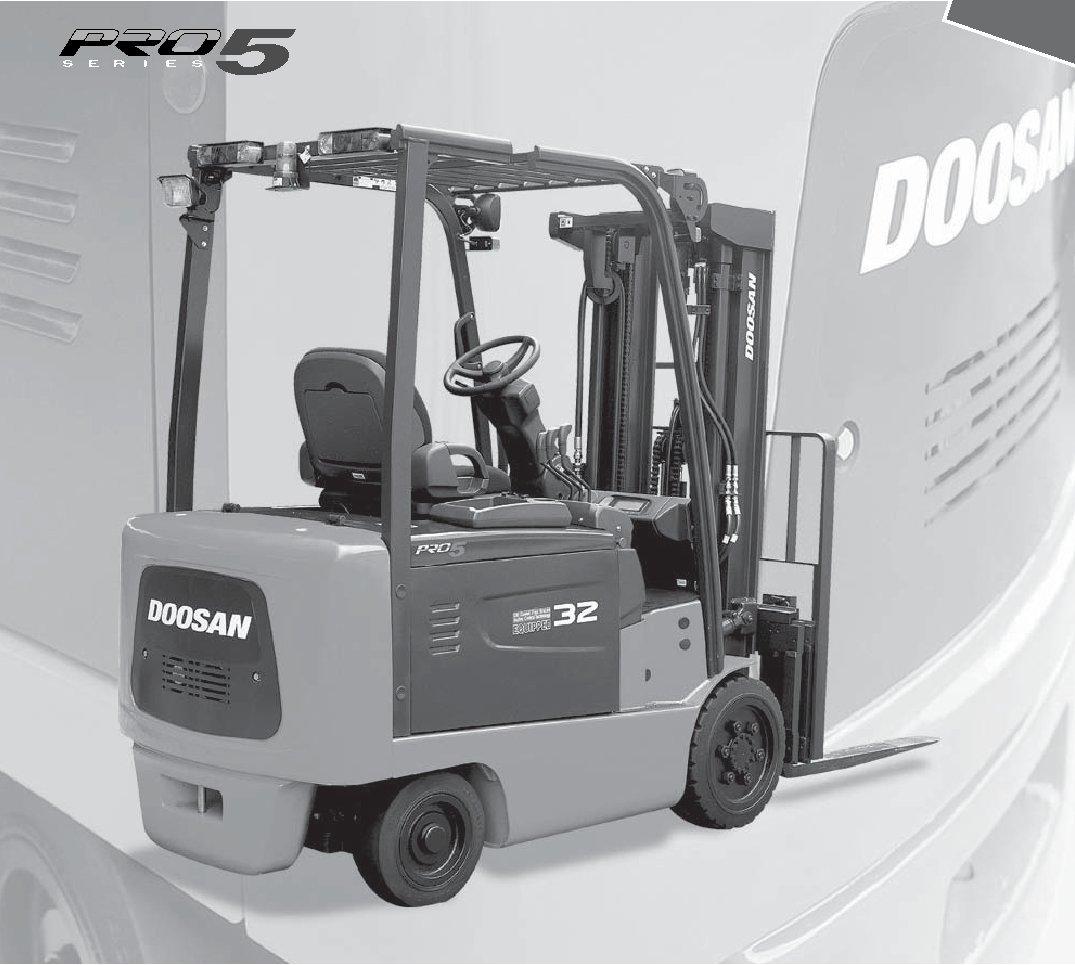

Doosan BC30S-5 Specs
Quick-reference specifications for the Doosan BC30S-5 forklift, taken from the manufacturer’s spec sheet.
- Max. gradeability loaded/unloaded(5 min. rating)
- 19.0/20.0 %
Performance 17 specs
| Load Capacity at rated load center | 6000 lb (3000 kg) |
|---|---|
| Load Center | 24 in (500 mm) |
| Free Lift | 6.0 in (152 mm) |
| Forks – Fork Spacing(Min x Max) | 11.1 x 37.6 in (282 x 954 mm) |
| Tilt of Mast Forward/Backward | 6 / 10 deg |
| Turning Radius Minimum outside | 80.9 in (2055 mm) |
| Travel Speed Loaded/Unloaded 36V | 9.0/10.6 mph (14.5/17.0 km/h) |
| Travel Speed Loaded/Unloaded 48V | 11.2/11.2 mph (18.0/18.0 km/h) |
| Lifting Speed Loaded/Unloaded 36V | 53/102 fpm (270/520 mm/s) |
| Lifting Speed Loaded/Unloaded 48V | 69/124 fpm (350/630 mm/s) |
| Lowering Speed Loaded/Unloaded | 98.4/91 fpm (500/460 mm/s) |
| Max. drawbar pull loaded/unloaded(5 min. rating) | 3307/2335 lb (1500/1059 kg) |
| Max. gradeability loaded/unloaded(5 min. rating) | 19.0/20.0 % |
| Tires Size, Front | 21×8-15 |
| Tires Size, Rear | 16×6-10.5 |
| Brakes Service | foot/hydraulic |
| Brakes Parking | hand |
Dimensions 14 specs
| Tire Type | C |
|---|---|
| Max. Fork Height with STD 2-stage mast | 127 in (3230 mm) |
| Forks – Length x Width x Thickness | 41.3 x 4.9 x 1.8 in (1050 x 125 x 45 mm) |
| Length to Fork Face | 88.6 in (2250 mm) |
| Overall Width | 43.7 in (1110 mm) |
| Overall Dimensions – Mast Lowered Height | 83.3 in (2115 mm) |
| Overall Dimensions – Mast Extended Height | 176.4 in (4480 mm) |
| Overall Dimensions – Overhead Guard Height | 87.0 in (2210 mm) |
| Overall Dimensions – Seat Height | 43.9 in (1115 mm) |
| Load Moment Center | 16.0 in (406 mm) |
| Tread Width Front | 35.7 in (907 mm) |
| Tread Width Rear | 35.5 in (902 mm) |
| Ground Clearance at the lowest point | 3.1 in (80 mm) |
| Ground Clearance at center of wheelbase | 4.1 in (103 mm) |
Weight 2 specs
| Axle Load, Loaded Front / Rear | 14945/2125 lb (6780/965 kg) |
|---|---|
| Axle Load, Unloaded Front / Rear | 3990/6470 lb (1810/2935 kg) |
Power / Engine 12 specs
| Power Type | AC electric |
|---|---|
| Total Service Weight with minimum weight of battery | 10460 lb (4745 kg) |
| Battery Type | lead-acid |
| Battery Max capacity(5 hours) 36V | 1400 AH |
| Battery Max capacity(5 hours) 48V | 1000 AH |
| Battery compartment sizes(W x L x H) | 40 x 34.5 x 23.2 in (1017 x 876 x 590 mm) |
| Battery Weight (Minimum) | 3000 lb (1360 kg) |
| Electric Motors Drive motor(1 HR Rating) 36V | 15.4 hp (11.5 kW) |
| Electric Motors Drive motor(1 HR Rating) 48V | 21.5 hp (16.0 kW) |
| Electric Motors Hyd. motor(15% Duty) 36V | 19.0 hp (14.0 kW) |
| Electric Motors Hyd. motor(15% Duty) 48V | 28.2 hp (21.0 kW) |
| Control Type with electric drive | MOSFET |
Hydraulics / Fluids 2 specs
| Relief Pressure system | 3002 psi (211 bar) |
|---|---|
| Relief Pressure Attachment | 2248 psi (155 bar) |
