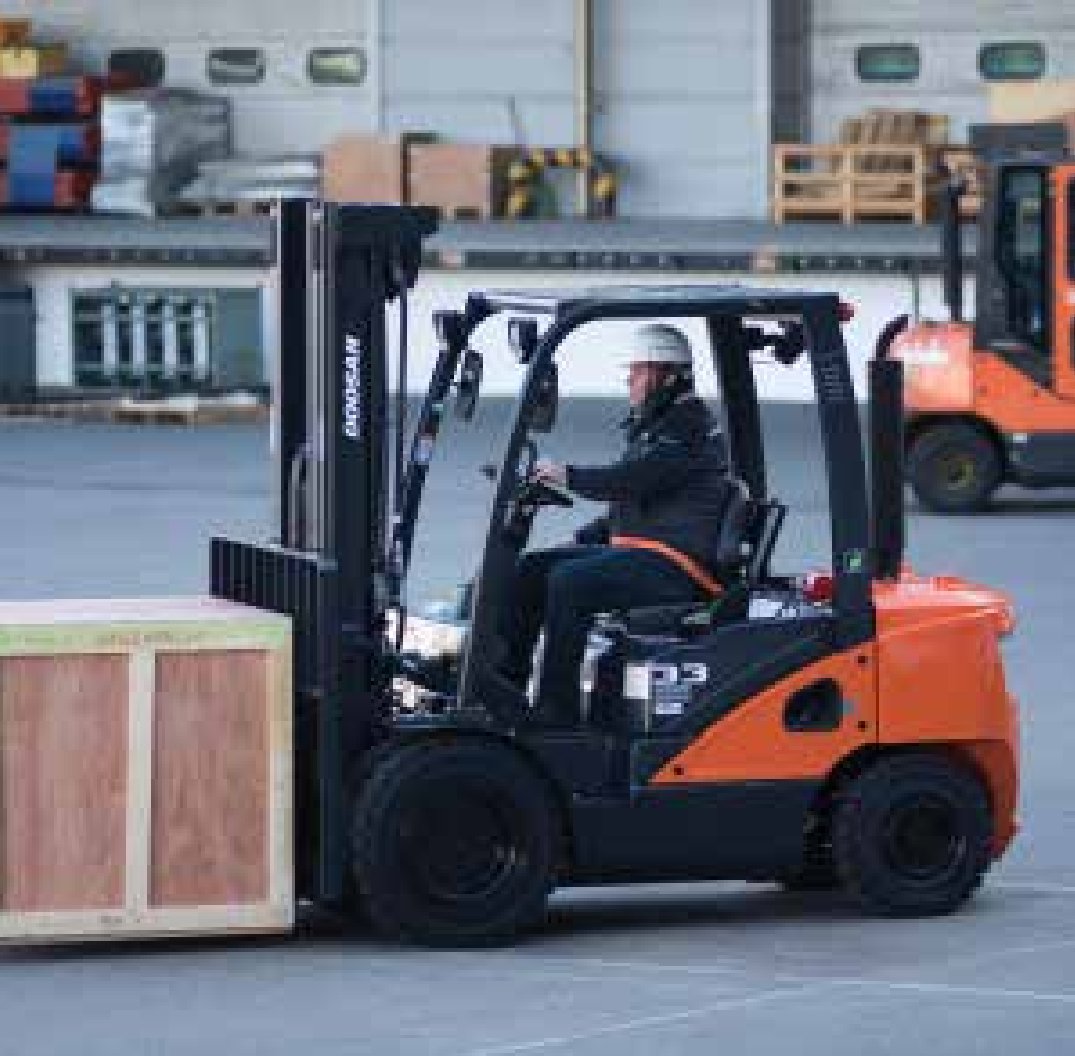

Doosan D25S-7 Specs

Quick-reference specifications for the Doosan D25S-7 forklift, taken from the manufacturer’s spec sheet.

Performance 1 spec

Load Capacity	2,500 kg

Load Center	500 mm
Load Distance: Center of Driveaxle to fork	480 mm
Wheelbase	2,015 mm
Height, Mast lowered	1,625 mm
Free Lift	147 mm
Lift Height	3,230 mm
Height, Mast Extended	4,490 mm
Height of Overhead Guard(Cabin)	2,183 mm
Height of Seat	1,026 mm
Overall Length	3,630 mm
Length to Forkface	2,595 mm
Overall Width	1,170 mm
Fork Dimensions	40x100x1,050 mm
