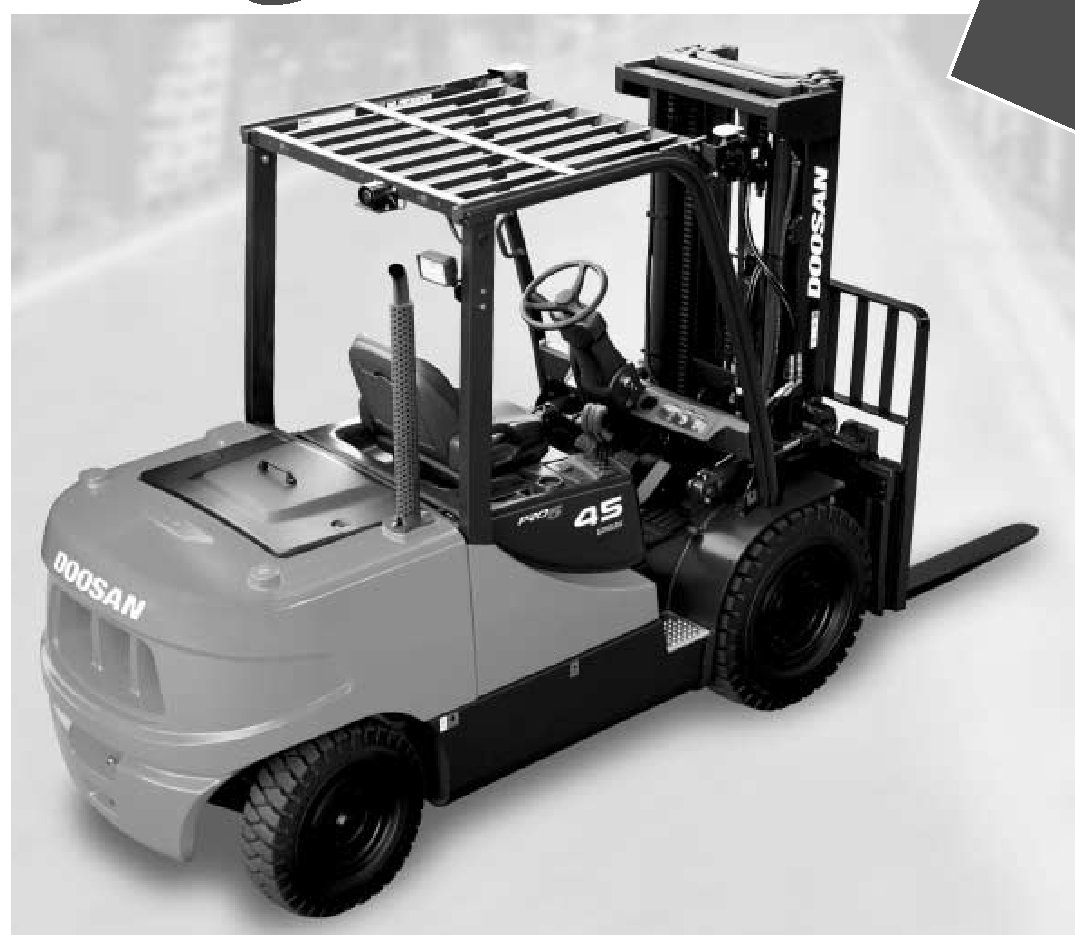

Doosan D55C-5 Specs
Quick-reference specifications for the Doosan D55C-5 forklift, taken from the manufacturer’s spec sheet.
- Max. gradeability Loaded at 1.0 mph (1.7km / h)
- 28 %
Performance 13 specs
| Load Capacity at rated load center | 5,500 kg |
|---|---|
| Load Center | 600 mm |
| Free Lift | 170 mm |
| Fork Spacing (Min x Max) | 340 x 1,290 mm |
| Tilt of Mast Forward / Backward | 8 / 10 deg |
| Turning Radius Minimum outside | 2,990 mm |
| Travel Speed Loaded / Unloaded | 24 / 25 km/h |
| Lifting Speed Loaded / Unloaded | 470 / 540 mm/s |
| Lowering Speed Loaded / Unloaded | 490 / 450 mm/s |
| Max. drawbar pull Loaded at 1.0 mph (1.6km / h) | 3,600 kg |
| Max. gradeability Loaded at 1.0 mph (1.7km / h) | 28 % |
| Brakes Service | shoe / disc |
| Brakes Parking | ratchet |
Dimensions 15 specs
| Tire type | P |
|---|---|
| Max. Fork Height with STD 2-stage mast | 3,050 mm |
| Forks Length x Width x Thickness | 1,200x150x60 mm |
| Length to Fork Face | 3,350 mm |
| Overall Width | 1,451 mm |
| Overall Dimensions Mast Lowered Height | 2,380 mm |
| Mast Extended Height | 4,470 mm |
| Overhead Guard Height | 2,230 mm |
| Seat Height | 1,255 mm |
| Load Moment Center | 571 mm |
| Tires Size, Front | 300×15-18 |
| Tires Size, Rear | 7.00×12-14 |
| Tread Width Front / Rear | 1,153 / 1,115 mm |
| Ground Clearance Loaded at the lowest point | 160 mm |
| Ground Clearance Loaded at center of wheelbase | 205 mm |
Weight 3 specs
| Total Service Weight, Unloaded | 7,390 kg |
|---|---|
| Axle Load Loaded, Front / Rear | 11,370 / 1,520 kg |
| Axle Load Unloaded, Front / Rear | 2,800 / 4,590 kg |
Power / Engine 7 specs
| Power type | Diesel |
|---|---|
| Battery Voltage / Ampere | 24 / 75 V/AH |
| Engine Model | DB58S |
| Engine Rated Power (DIN) | 91 / 2,200 HP/rpm (68 / 2,200 kW/rpm) |
| Maximum Torque | 33 / 1,600 kgm/rpm |
| Cylinders / Displacements | 6 / 5,785 CC |
| Transmission Type | powershift |
Hydraulics / Fluids 2 specs
| Hydraulic Pressure System | 230 bar |
|---|---|
| Hydraulic Pressure Attachment | 140 bar |
