- Doosan D80S-7
Forklift · Doosan

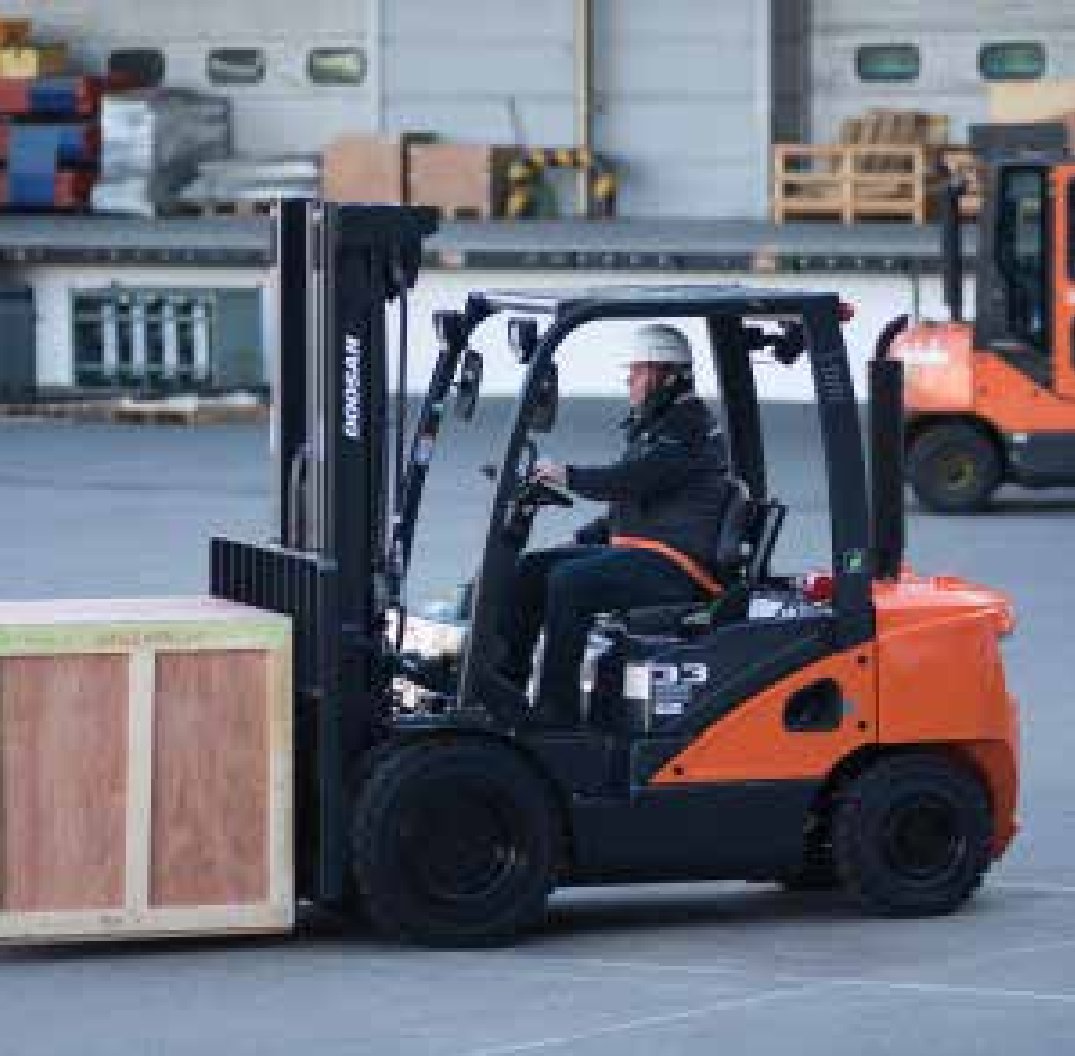

Doosan D80S-7 Specs
Quick-reference specifications for the Doosan D80S-7 forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability (at 1.6 km/h loaded)
- 31%
Performance 8 specs
| Load Capacity (nominal) | 17,637 lb (8,000 kg) |
|---|---|
| Load Center Distance | 24 in (600 mm) |
| Lift Speed (loaded/unloaded) | 420 mm/s / 470 mm/s |
| Lowering Speed (loaded/unloaded) | 500 mm/s / 450 mm/s |
| Gradeability (at 1.6 km/h loaded) | 31% |
| Turning Radius (minimum outside) | 11 ft 11 in (3.65 m) |
| Maximum Fork Height (std 2-stage mast) | 10 ft 2 in (3,100 mm) |
| Free Lift | 215 mm |
Dimensions 10 specs
| Overall Length | 13 ft 2 in (4,014 mm) |
|---|---|
| Overall Width | 7 ft 4 in (2,230 mm) |
| Overhead Guard Height (without cabin) | 8 ft 9 in (2,673 mm) |
| Overhead Guard Height (with cabin) | 9 ft 1 in (2,771 mm) |
| Mast Lowered Height | 9 ft 4 in (2,835 mm) |
| Mast Extended Height | 14 ft 4 in (4,375 mm) |
| Seat Height | 5 ft (1,526 mm) |
| Wheelbase | 8 ft 2 in (2,500 mm) |
| Fork Carriage Thickness x Width x Length | 70 x 180 x 1200 mm |
| Fork Spacing (min x max) | 410 x 2,092 mm |
Weight 1 spec
| Total Weight (unloaded) | 10,141 lb (4,600 kg) |
|---|
Power / Engine 5 specs
| Engine Type | D34 |
|---|---|
| Power Output | 108 hp (80.9 kW) |
| Displacement | 207.9 cu in (3.409 L) |
| Number of Cylinders | 4 |
| Max Torque | 375 Nm |
Hydraulics / Fluids 1 spec
| Tilt of Mast (forward/backward) | 15° / 10° |
|---|
