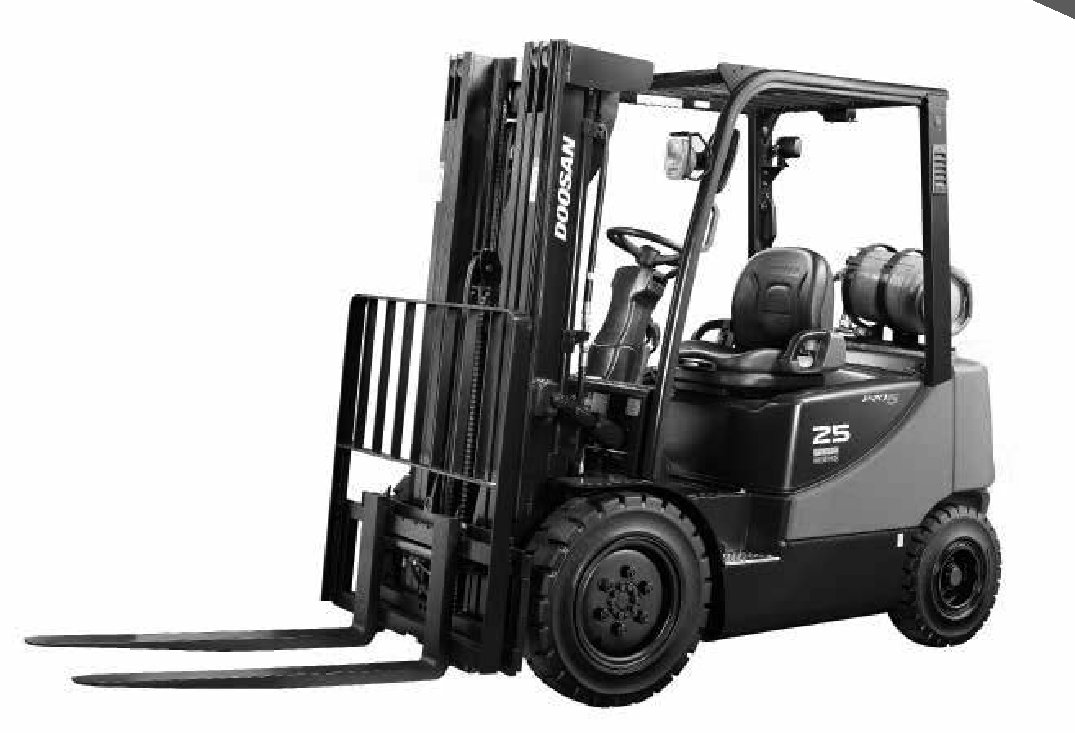

Doosan G30E-5 Specs
Quick-reference specifications for the Doosan G30E-5 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 9,656 lb4.38 t
- Maximum Gradeability (loaded)
- 21%
Performance 7 specs
| HP/rpm | 45.5 / 2,450 |
|---|---|
| Rated Load Capacities | D/G15S-5 |
| Tilt Angle – BWD | LC 24 in (LC 500 mm) |
| Load Capacity | 6,000 lb (3,000 kg) |
| Travel Speed (loaded) | 11.2 mph (18 km/h) |
| Travel Speed (unloaded) | 11.8 mph (19 km/h) |
| Maximum Gradeability (loaded) | 21% |
Dimensions 10 specs
| Overall Length | 106.3 in (2,700 mm) |
|---|---|
| Overall Width | 47.1 in (1,197 mm) |
| Height to Top of Overhead Guard | 86.0 in (2,183 mm) |
| Mast Lowered Height | 85.2 in (2,163 mm) |
| Wheelbase | 66.9 in (1,699 mm) |
| Turning Radius | 93.1 in (2,365 mm) |
| Load Center | 24.0 in (500 mm) |
| ForkSize(TxWxL) | 1.8 x 4.9 x 41 in |
| Maximum Fork Spread | 41.1 in (1,043 mm) |
| Front Overhang | 19.1 in (485 mm) |
Weight 1 spec
| Operating Weight | 9,656 lb (4.38 t) |
|---|
Power / Engine 3 specs
| Horsepower | 54.0 hp (40.2 kW) |
|---|---|
| Cylinders/Displacement | 4/143.3 cu in (2.359 L) |
| Torque @ RPM | 116 ft-lb (157 Nm) @ 1900 rpm |
Hydraulics / Fluids 5 specs
| Relief Pressure (Hydraulics) | 3,132 psi |
|---|---|
| Mast Type | 3-Stage |
| Free Lift Height | 6.0 in (152 mm) |
| Minimum Aisle (right angle stack) | 112.2 in (2,850 mm) |
| Maximum Drawbar Pull | 3,273 lb (1,485 kg) |
