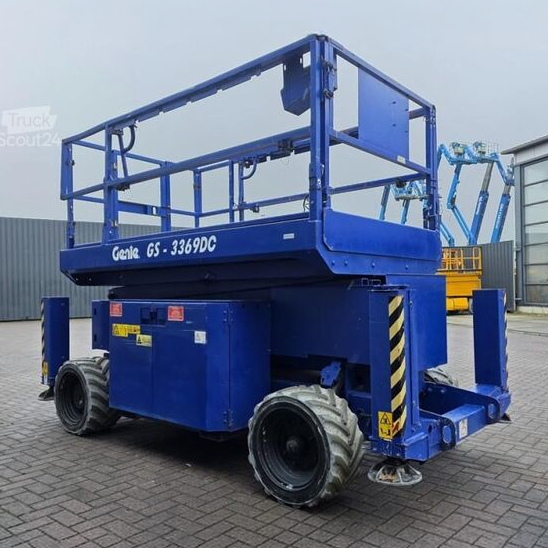

Genie GS-3369DC Specs

Quick-reference specifications for the Genie GS-3369DC scissor lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 1,000 lb454 kg
Platform height max.: 32 ft 8 in9.96 m
Working height max.: 38 ft 8 in11.96 m
Weight: 7,687 lb3,487 kg

Performance 12 specs

Working height max.	38 ft 8 in (11.96 m)
Lift capacity	1,000 lb (454 kg)
Lift capacity – extension deck extended	300 lb (136 kg)
Drive speed – stowed	4.5 mph (7.2 km/h)
Drive speed – raised	0.3 mph (0.5 km/h)
Gradeability – stowed	35 %
Turning radius – inside/outside	83 in / 181.2 in (2.11 m / 4.6 m)
Lifting speed – raise/lower	39 / 34 sec
Tires – Non-marking, rough terrain	12 × 26 in (30 × 66 cm)
Sound Pressure level (ground workstation)	< 70 dBA
Sound Pressure level (platform workstation)	< 70 dBA
Vibrations	< 8 ft 2 in/s² (< 2.5 m/s²)

Dimensions 16 specs

Platform height max.	32 ft 8 in (9.96 m)
Platform height – stowed	4 ft 10 in (1.47 m)
Platform length – outside	9 ft 2 in (2.79 m)
Platform length – outside, extended	14 ft 2 in (4.32 m)
Slide-out platform extension deck – length	5 ft (1.52 m)
Platform width – outside	5 ft 3 in (1.60 m)
Toeboard height	6 in (15 cm)
Height – stowed (folding rails)	8 ft 6 in (2.59 m)
Height – stowed (rails lowered)	6 ft 3.5 in (1.92 m)
Length machine – stowed	10 ft 3 in (3.12 m)
Length machine – stowed, extended	14 ft 9.5 in (4.50 m)
Length machine – with outriggers	12 ft 4 in (3.76 m)
Width	5 ft 9 in (1.75 m)
Wheelbase	7 ft 6 in (2.29 m)
Ground clearance (center)	9.5 in (24 cm)
Max. platform drive height	32 ft 8 in (9.96 m)

Weight 5 specs

Weight	7,687 lb (3,487 kg)
Weight with outriggers	8,480 lb (3,846 kg)
Tire load max.	3,180 lb (1,442 kg)
Tire contact pressure	79.5 psi (548 kPa)
Occupied floor pressure	170 psf (8.14 kPa)

Hydraulics / Fluids 1 spec

Hydraulic tank capacity	18 gal (68.1 L)
