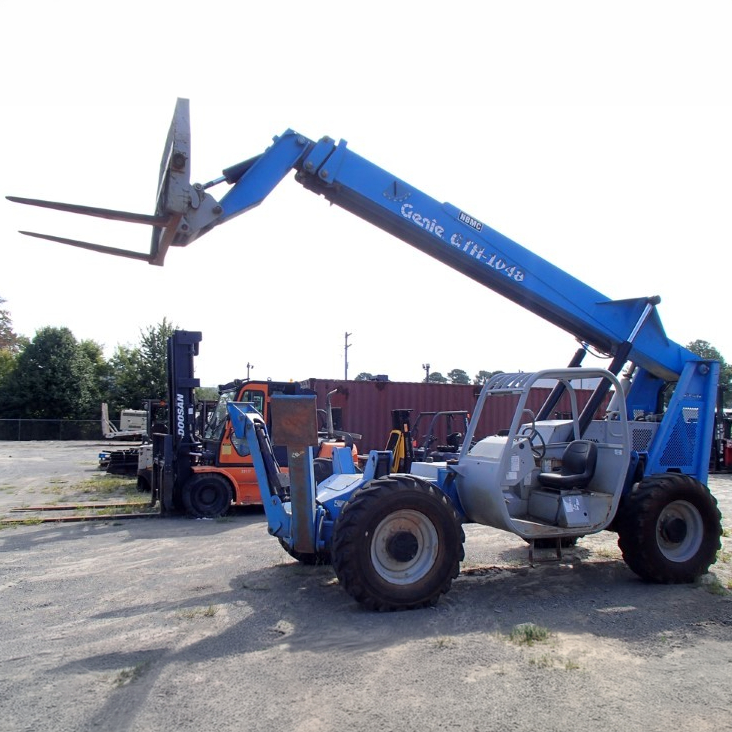

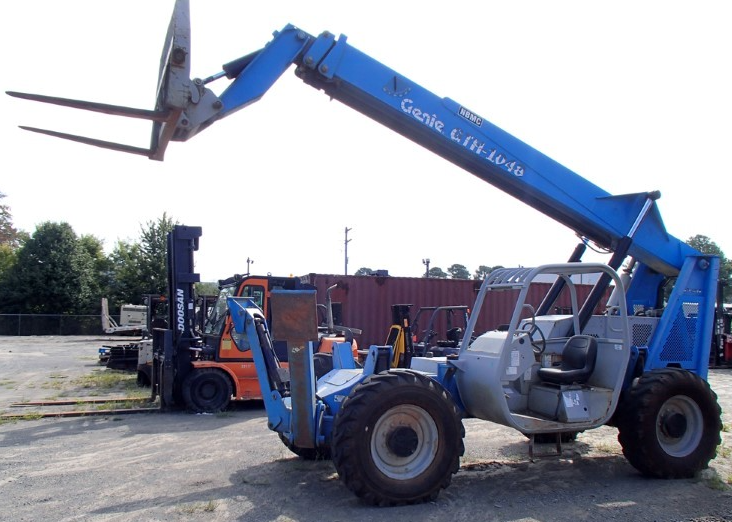

Genie GTH-1048 Spec Sheet
Quick-reference specifications for the Genie GTH-1048. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum lift height: 48 ft
Maximum lift capacity: 10,000 lbs
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum lift height | 48 ft |
|---|---|
| Maximum lift capacity | 10,000 lbs |
| Lift capacity at maximum height | 6,000 lbs |
| Lift capacity at maximum reach | 3,000 lbs |
| Frame Leveling | 10° side to side |
Dimensions
| Height, stowed 8 ft | 5 in |
|---|---|
| Length, stowed (without forks) | 22 ft |
| Width 8 ft | 6 in |
| Wheelbase 10 ft | 8 in |
| Ground clearance, center 1 ft | 9 in |
| Ground clearance, axle 1 ft | 7 in |
Weights & Electrical
| Reach 32 ft | 11 in |
|---|---|
| Power source John Deere 4045TF275 | 4 cylinder diesel, |
| HIGH REACH ROUGH TERRAIN TELEHANDLER GTH-1048 4K 0307E. Part No. | 109422 |
Powertrain & Systems
| Drive speed | 18 mph |
|---|---|
| Tires, standard size 14 x 24 in, | 12 ply |
Hydraulics & Capacities
| Auxiliary hydraulic flow | 3-15 gpm |
|---|---|
| Auxiliary hydraulic pressure | 3,200 psi |
| Hydraulic tank capacity | 45 gal |
| Hydraulic system capacity (w/tank) | 54 gal |
| Fuel tank capacity | 35 gal |
