Telehandler · Genie

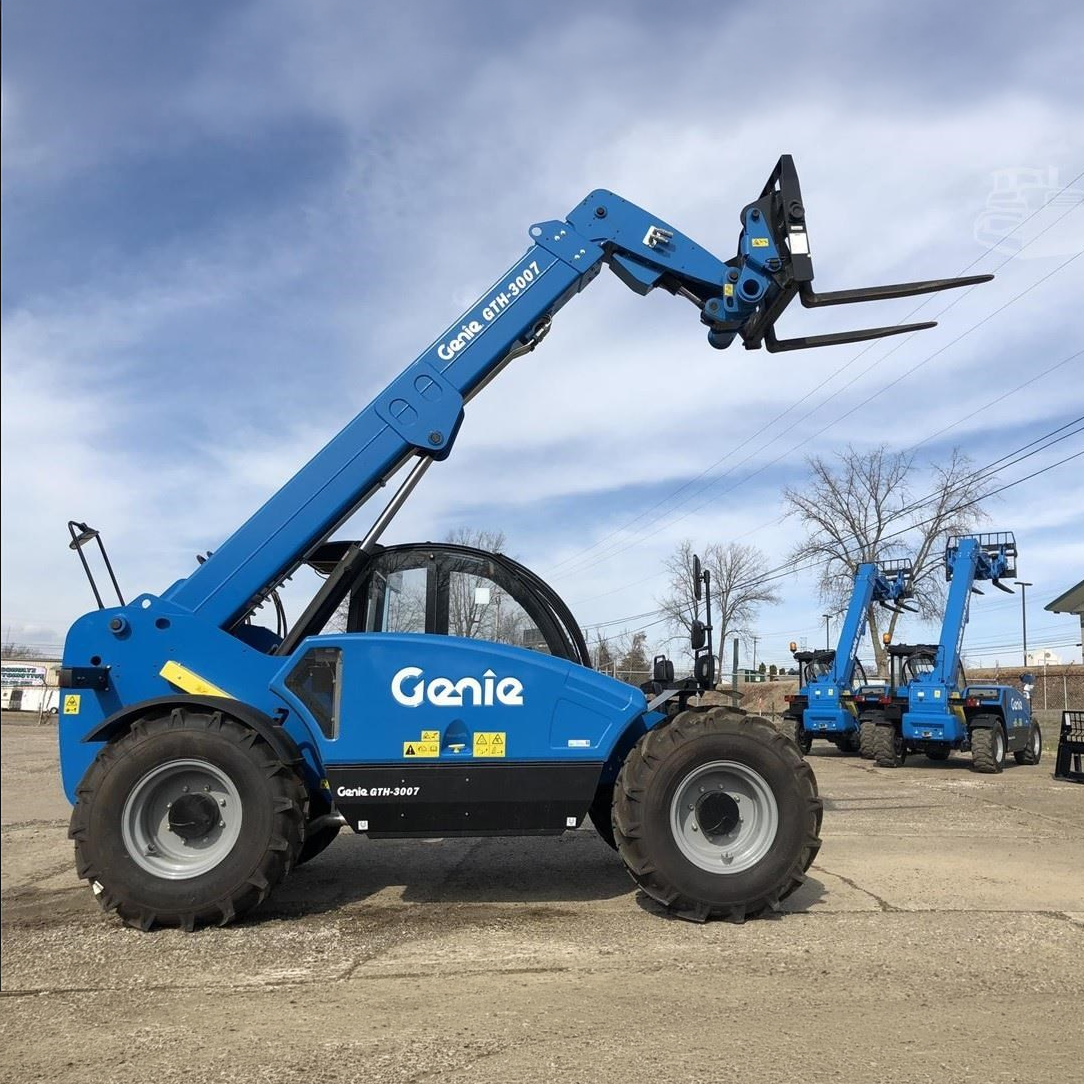

Genie GTH-3007 AU-AG Specs
Quick-reference specifications for the Genie GTH-3007 AU-AG telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,512 lb2,500 kg
- Weight
- 13,448 lb6,100 kg
Performance 9 specs
| Lifting capacity maximum | 6,614 lb (3,000 kg) |
|---|---|
| Lift capacity at maximum height | 5,512 lb (2,500 kg) |
| Lift capacity at maximum reach | 1,764 lb (800 kg) |
| Forward reach maximum | 12 ft 9 in (3.90 m) |
| Reach at maximum height | 2 ft 6 in (0.76 m) |
| Inside/outside turning radius | 7 ft 3 in / 12 ft 6 in (2.20 m / 3.80 m) |
| Drawbar pull | 11,464 lb (5,200 kg) |
| Drive speed | 17 mph (32 km/h) |
| Fork-holder plate rotation | 128° |
Dimensions 12 specs
| Lifting height maximum | 22 ft 8 in (6.90 m) |
|---|---|
| Height | 6 ft 9 in (2.07 m) |
| Height at steering wheel | 4 ft 5 in (1.35 m) |
| Width | 6 ft 6 in (1.99 m) |
| Inside cab width | 2 ft 5 in (0.75 m) |
| Track | 5 ft 3 in (1.59 m) |
| Wheelbase | 8 ft 8 in (2.66 m) |
| Length at fork-holder plate | 15 ft 5 in (4.71 m) |
| Ground clearance | 1 ft 8 in (0.50 m) |
| Overall length | 19 ft 5 in (5.91 m) |
| Obstruction angle | 90° |
| Departu re angle | 50° |
Weight 1 spec
| Weight | 13,448 lb (6,100 kg) |
|---|
Power / Engine 2 specs
| Tank capacities – Fuel | 23.8 gal (90 L) |
|---|---|
| Tank capacities – Engine oil | 2.6 gal (10 L) |
Hydraulics / Fluids 1 spec
| Tank capacities – Hydraulic oil | 21.1 gal (80 L) |
|---|
