Telehandler · Genie

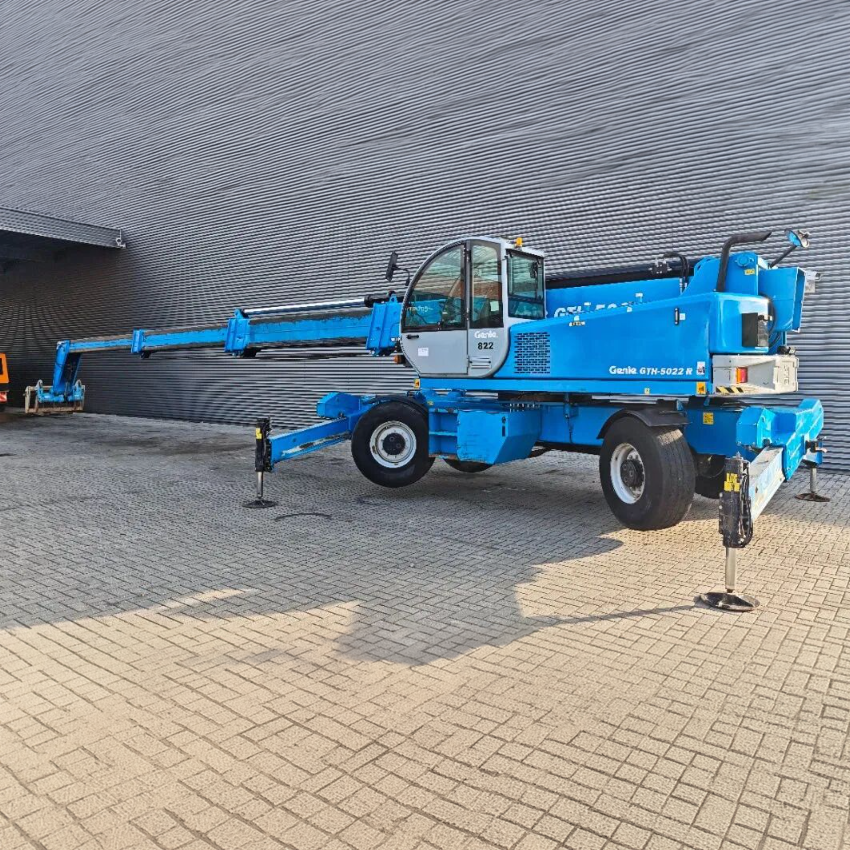

Genie GTH-5022R Specs
Quick-reference specifications for the Genie GTH-5022R telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity at maximum height
- 5,511 lb2,500 kg
- Weight
- 42,435 lb19,250 kg
Performance 11 specs
| Lifting capacity maximum | 11,022 lb (5,000 kg) |
|---|---|
| Lift capacity at maximum height | 5,511 lb (2,500 kg) |
| Lift capacity at maximum reach | 882 lb (400 kg) |
| Forward reach maximum | 62 ft 1 in (18.93 m) |
| Reach at maximum height | 13 ft 5 in (4.10 m) |
| Inside/outside turning radius | 8 ft 4 in/15 ft 10 in (2.55 m/4.82 m) |
| Drive speed max. | 18.6 mph (30 km/h) |
| Fork-holder plate rotation | 131° |
| Chassis levelling on front axle | +/- 8° |
| Vibration level hand-arm system | <8 ft 2 in/s² (<2.5 m/s²) |
| Vibration level whole body | 9 in/s² (0.23 m/s²) |
Dimensions 15 specs
| Lifting height maximum | 71 ft 11 in (21.93 m) |
|---|---|
| Height | 10 ft (3.05 m) |
| Height at steering wheel | 7 ft 3 in (2.20 m) |
| Width | 8 ft 2 in (2.49 m) |
| Cab width | 3 ft (93 cm) |
| Track | 6 ft 8 in (2.02 m) |
| Wheelbase | 11 ft 6 in (3.50 m) |
| Length at stabilisers | 19 ft 11 in (6.06 m) |
| Length at fork-holder plate | 25 ft 3 in (7.70 m) |
| Ground clearance | 1 ft 5 in (43 cm) |
| Overall width, stabilisers extended | 16 ft 11 in (5.15 m) |
| Side rear overhang | 9 ft 5 in (2.87 m) |
| Side front overhang | 15 ft 4 in (4.67 m) |
| Overall length | 29 ft 2 in (8.88 m) |
| Overall front overhang | 19 ft 2 in (5.85 m) |
Weight 1 spec
| Weight | 42,435 lb (19,250 kg) |
|---|
Power / Engine 1 spec
| Engine oil | 4 gal (18 L) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic oil | 44 gal (200 L) |
|---|
