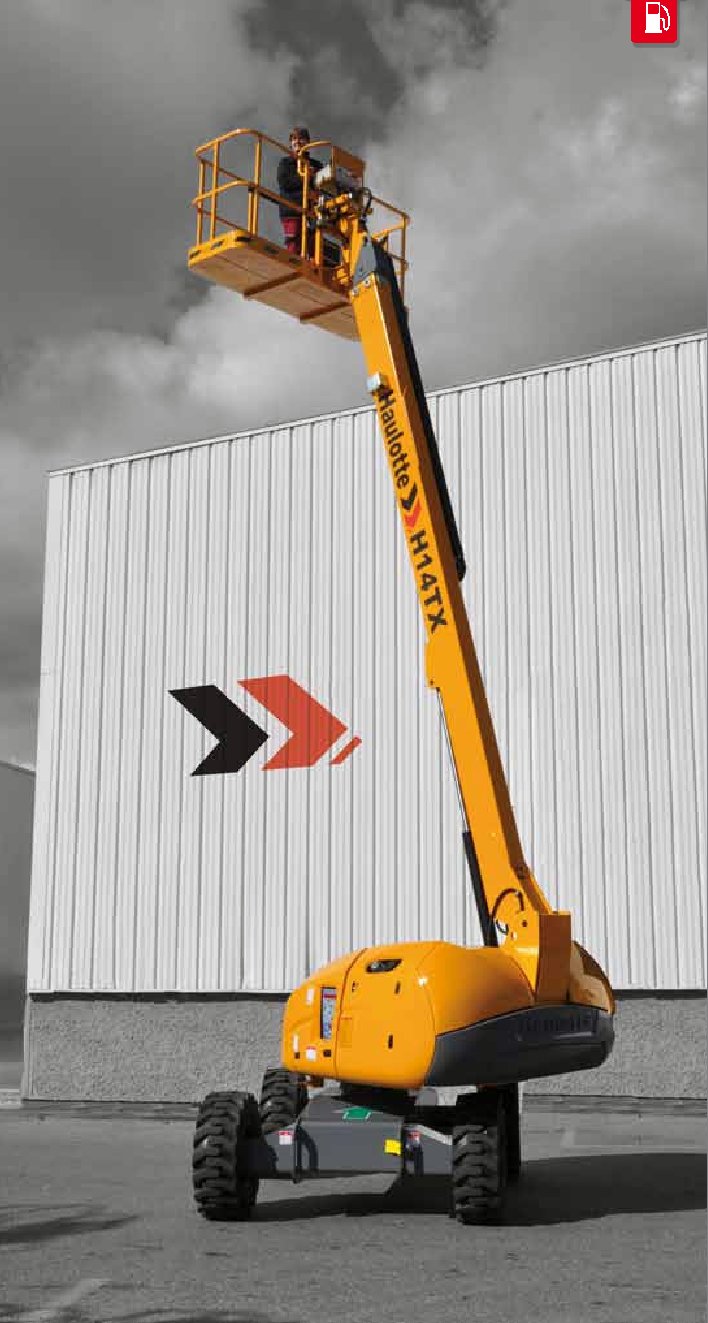

Haulotte H14TX Specs
Quick-reference specifications for the Haulotte H14TX aerial lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 230 kg
- Platform height
- 12.07 m
- Working height
- 14.07 m
- Weight
- 5900 kg
Performance 12 specs
| Working height | 14.07 m |
|---|---|
| Horizontal outreach | 10.7 m |
| Lift capacity | 230 kg |
| Vertical jib rotation | N/A |
| Platform rotation | 180° (+90/-90) |
| Boom rotation angle | +75°/-13° |
| Turntable rotation | 360 ° |
| Tilt | 5 ° |
| Drive speed | 0.8 – 6 km/h |
| Gradeability | 50 % |
| Turning radius – outside | 4.5 m |
| Tires – foam-filled | 14-17.5 |
Dimensions 10 specs
| Platform height | 12.07 m |
|---|---|
| F x G Platform size | 2.3 x 0.8 m |
| Length – stowed | 7.6 m |
| Length – storage | 7.6 m |
| Width | 2.3 m |
| Height – stowed | 2.2 m |
| Height – storage | 2.2 m |
| Tailswing | 85 cm |
| Wheelbase | 2 m |
| Ground clearance | 35 cm |
Weight 1 spec
| Weight | 5900 kg |
|---|
Power / Engine 1 spec
| Engine | 42,4 hp (31,2 kW –) |
|---|
