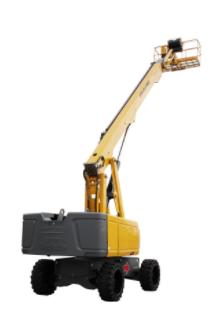

Haulotte HT85RTJO Specs

Quick-reference specifications for the Haulotte HT85RTJO aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform height: 85 ft
Working height: 91 ft
Weight: 39,500 lb
Gradeability: 45 %

Performance 12 specs

Working height	91 ft
Horizontal outreach	78 ft 3 in
Below grade reach	9 ft 8 in
Vertical jib rotation	133° (- 66° / + 67°)
Platform rotation	180° (+ 90° / – 90°)
Turret swing	360° continuous
Tilt alarm	4 °
Drive speed	0.3 – 3.1 mph
Maximum wind speed rating	28 mph
Gradeability	45 %
Turning radius – outside	21 ft 6 in
Tires – solid rough terrain	40.4 x 14.4 in

Dimensions 9 specs

Platform height	85 ft
Platform size	8 ft x 3 ft
Width	8 ft 2 in
Height – stowed	9 ft 4 in
Height – transport	9 ft 9 in
Tailswing	60 in
Wheelbase	9 ft 2 in
Ground clearance	19 in
Jib length	6 ft

Weight 1 spec

Weight	39,500 lb

Hydraulics / Fluids 1 spec

Fuel tank	32 gal
