Aerial Lift · Haulotte

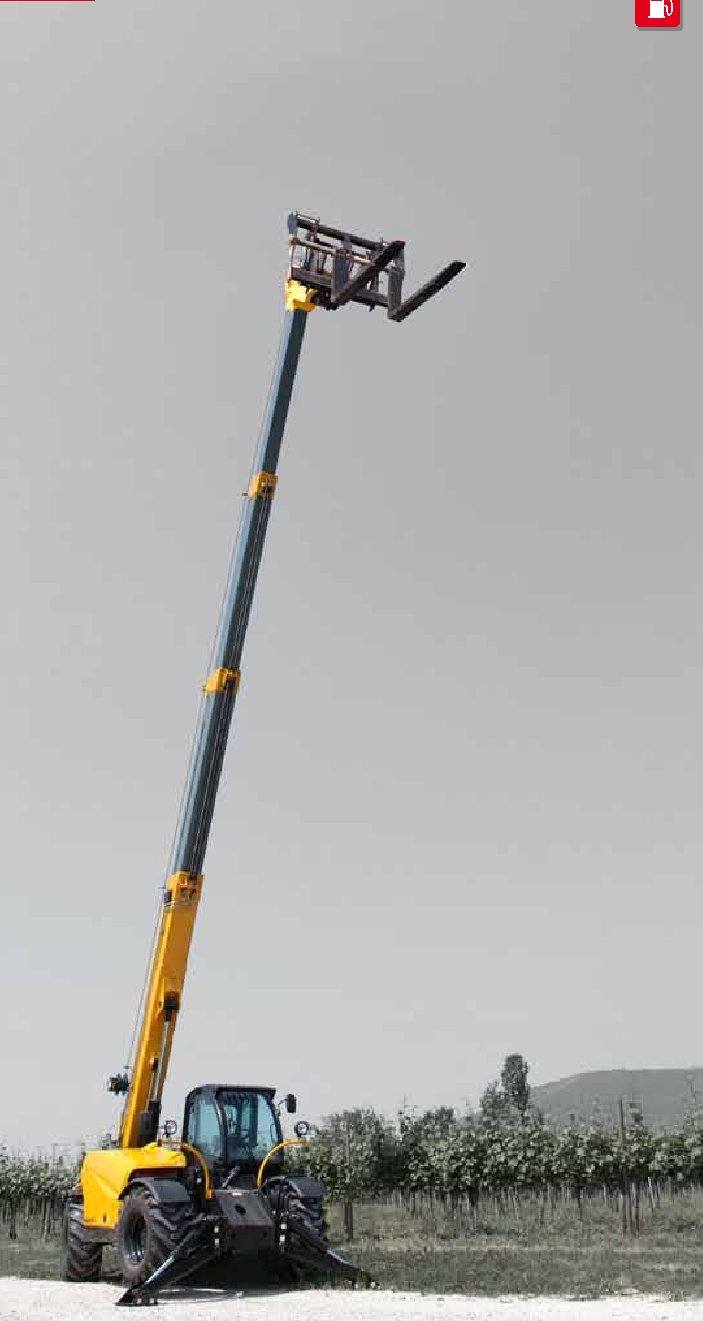

Haulotte HTL4017 Specs
Quick-reference specifications for the Haulotte HTL4017 aerial lift, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 4000 kg
- Maximum forward reach
- 12.85 m
Performance 7 specs
| Maximum lift capacity | 4000 kg |
|---|---|
| Lift capacity to full height | 2500 kg |
| Lift capacity at full reach | 700 kg |
| Reach at maximum fork height | 2.4 m |
| Maximum forward reach | 12.85 m |
| Upper rotation of forks | 18 ° |
| Lower rotation of forks | 104 ° |
Dimensions 11 specs
| Maximum fork height | 16.7 m |
|---|---|
| Length | 6.76 m |
| Width | 2.43 m |
| Height | 2.67 m |
| Wheelbase | 2.9 m |
| Ground clearance | 50 cm |
| Track width | 1.93 m |
| Cab width | 0.96 m |
| Overall width – stabilizers down | 3.34 m |
| Height to high boom pivot | 1.75 m |
| Approach angle | 29 ° |
Weight 2 specs
| Weight with forks | 12320 kg |
|---|---|
| Tyres type | 18 – 22,5 TMR4 |
Power / Engine 5 specs
| Engine model | Deutz BF04M2012 |
|---|---|
| Engine power output | 74,9 kW / 102 CV |
| Engine torque | 420 Nm |
| Transmission type | Hydrostatic |
| Engine oil | 110 l |
Hydraulics / Fluids 1 spec
| Fuel tank | 132.5 l |
|---|
