Forklift · Hyster

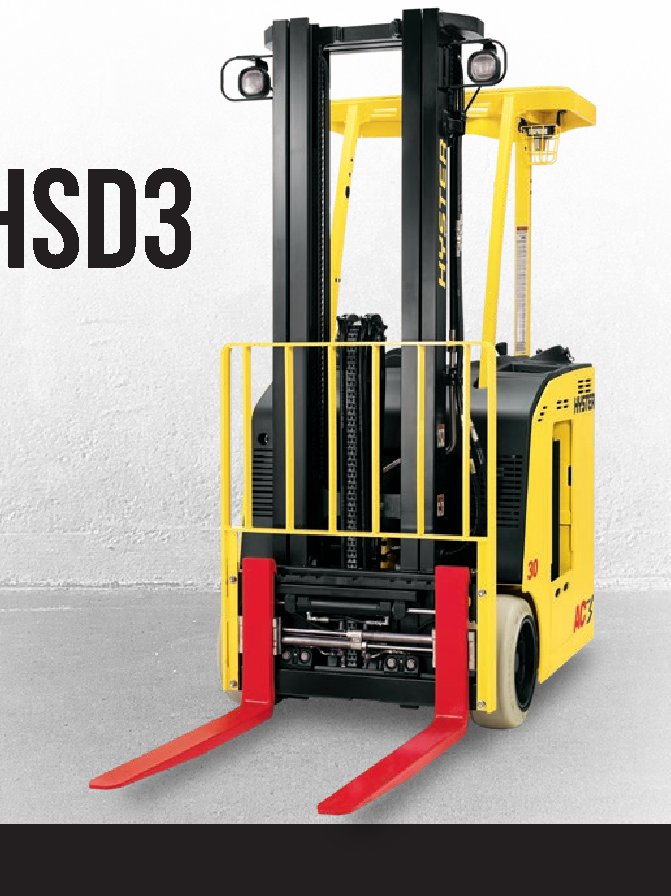

Hyster E30HSD3 Specs
Quick-reference specifications for the Hyster E30HSD3 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3000 lb1361 kg
- Gradeability 5 minute rating (NL/RL)
- 15.0/15.0 %
Performance 14 specs
| Rated capacity | 3000 lb (1361 kg) |
|---|---|
| Load center | 24 in (609 mm) |
| Lift speed Std 2-stg LFL mast (NL/RL) | 87/59 ft/min (0.44/0.30 m/sec) |
| Lift speed Opt 2-stg FFL mast (NL/RL) | 87/59 ft/min (0.44/0.30 m/sec) |
| Lift speed Opt 3-stg FFL mast (NL/RL) | 83/65 ft/min (0.42/0.33 m/sec) |
| Lower speed Std 2-stg LFL mast (NL/RL) | 63/100 ft/min (0.32/0.51 m/sec) |
| Lower speed Opt 2-stg FFL mast (NL/RL) | 61/98 ft/min (0.31/0.50 m/sec) |
| Lower speed Opt 3-stg FFL mast (NL/RL) | 71/88 ft/min (0.36/0.45 m/sec) |
| Gradeability 5 minute rating (NL/RL) | 15.0/15.0 % |
| Drawbar pull 5 minute rating (NL/RL) | 2602/2356 LBF |
| Brake Method of control | Spring apply/Elec. released |
| Brake Method of operation | Foot |
| Tread (tires) std dr/steer/steer | 35/10.5/24.5 in (889/267/622 mm) |
| Sound level (measured per ANSI B56.11.5) | 69 dB (A) |
Dimensions 9 specs
| Mast – lowered height (std mast) | 84 in (2130 mm) |
|---|---|
| Mast – extended height (std mast with/without LBR) | 180/154 in (4555/3912 mm) |
| Overhead guard height (std/opt) | 88/83 in (2234/2108 mm) |
| Overall width | 42 in (1067 mm) |
| Forks (thickness x width x length) | 1.5 x 4 x 42 in (38 x 102 x 1067 mm) |
| Ground clearance (center of wheelbase) NL | 4 in (102 mm) |
| Tire type – rubber, polyurethane etc. (drive/steer) | Rubber/polyurethane |
| Tire size (drive/steer) | 18 x 7 – 12.1/10 x 5 – 6.5 in |
| Step height | 9.5 in (241 mm) |
Power / Engine 8 specs
| Power/voltage | Electric/36 Volts |
|---|---|
| Floor to top of battery rollers | 7.5 in (190 mm) |
| Battery compartment Height | 31.1 in (790 mm) |
| Battery compartment Width Nominal | 38 in SIZE |
| Battery compartment Width Actual | 38.6 in (980 mm) |
| Battery Volts | 36 |
| Traction motors (dual) 60 minute rating each | 6.4 hp (4.8 kW) |
| Traction motors (type/control method) | AC/Transistor |
Hydraulics / Fluids 3 specs
| Pump motor 15 minute rating | 16.1 hp (12 kW) |
|---|---|
| Pump motor (type/control method) | AC/Transistor |
| Attachment relief pressure | 2000 psi (138 bar) |
