Forklift · Hyster

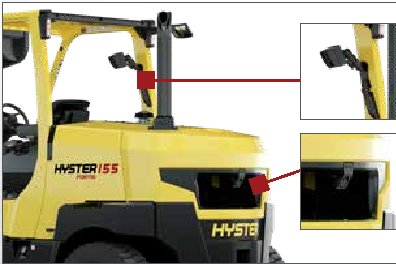

Hyster H170FTS Specs
Quick-reference specifications for the Hyster H170FTS forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 24,824 lb11,260 kg
- Gradeability
- 29%
Performance 6 specs
| Lowering speed, optional 3-stage FFL RL / NL | 2-spd Xmsn drawbar pull @ maximum RL / NL |
|---|---|
| Load Capacity | 17,000 lb (8,000 kg) |
| Load Center | 24 in (600 mm) |
| Max Speed | 15 mph |
| Max Lift Speed | 84 ft/min |
| Gradeability | 29% |
Dimensions 8 specs
| Overall Width | 88 in (2,239 mm) |
|---|---|
| Overall Length to Fork Face | 153 in (3,897 mm) |
| Height – Mast Lowered | 156 in (3,962 mm) |
| Height – Mast Extended | 266-270 in (6,739-6,847 mm) |
| Overhead Guard Height | 100 in (2,531 mm) |
| Turning Radius – Outside | 145 in (3,673 mm) |
| Wheelbase | 96.5 in |
| Ground Clearance | 10 in (25 cm) |
Weight 1 spec
| Operating Weight | 24,824 lb (11,260 kg) |
|---|
Power / Engine 6 specs
| Engine Type | 3.8 L Diesel Turbocharged |
|---|---|
| Power Output | 74 hp (55 kW) – Standard OR 110 hp (82 kW) – Optional |
| Displacement | 230 cu in (3,769 cu cm) |
| Cylinders | 4 |
| Torque | 227 lb-ft (308 Nm) @ 1,400 rpm |
| Fuel Tank Capacity | 20 gal (75 L) |
Hydraulics / Fluids 3 specs
| Hydraulic Tank Capacity | 19 gal (72 L) |
|---|---|
| Front Tire Size | 8.25 X 15 14PR |
| Rear Tire Size | 8.25 X 15 14PR |
