Forklift · Hyster

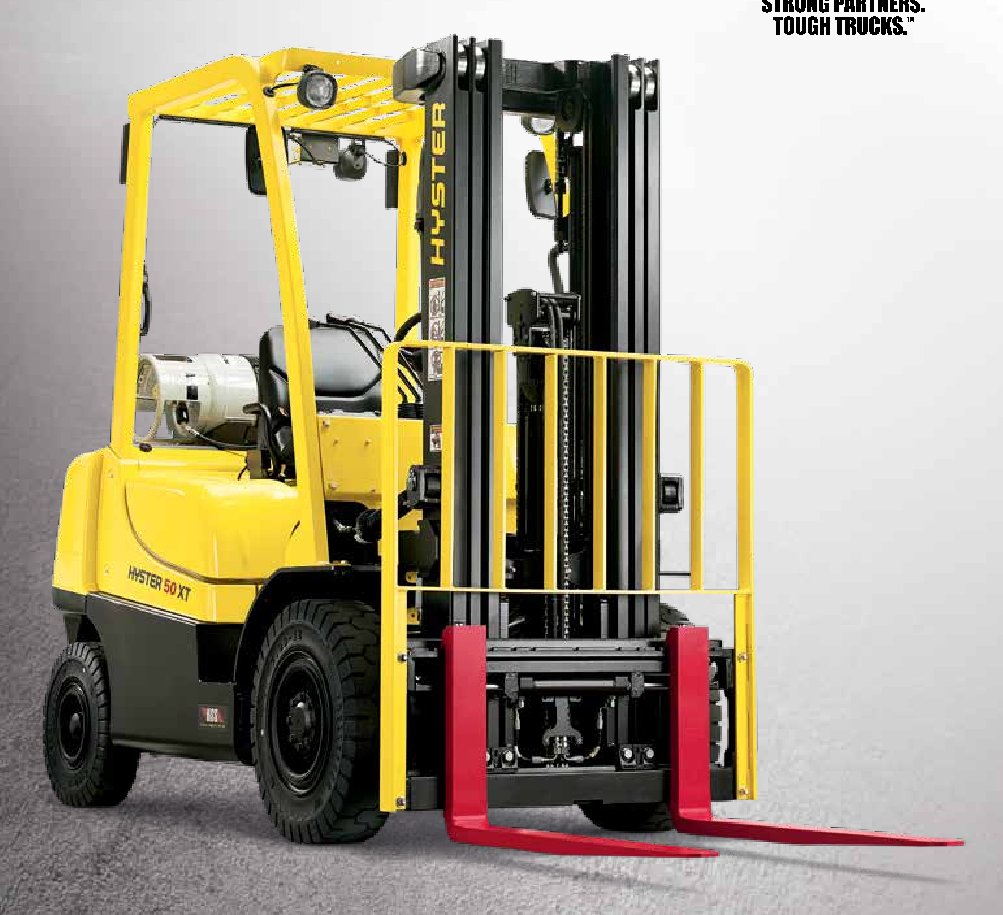

Hyster H40XT Specs
Quick-reference specifications for the Hyster H40XT forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4000 lb1814 kg
- Gradeability, Standard Transmission @ 1 mph RL/NL
- 35.9/31.5 Percent
Performance 9 specs
| Rated Capacity | 4000 lb (1814 kg) |
|---|---|
| Load Center, Distance | 24 in (610 mm) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 128/134 ft/min (0.65/0.68 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 120/126 ft/min (0.61/0.64 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 114/98 ft/min (0.58/0.50 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 114/98 ft/min (0.58/0.50 m/s) |
| Maximum drawbar pull RL/NL | 4947/2282 lb (2244/1035 kg) |
| Mast Tilt Angles, Forward/Backward | 6/6 degrees |
| Turning Radius, Minimum Outside (OTR) | 85.7 in (2178 mm) |
Dimensions 14 specs
| Step Height | 16.3 in (415 mm) |
|---|---|
| Lift Height, Top of Fork (TOF) | 129 in (3292 mm) |
| Forks, Thickness x Width x Length | 1.6 X 3.9 X 42 in (40 X 100 X 1067 mm) |
| Length To Face of Forks | 99.5 in (2528 mm) |
| Overall Width, Standard Tread | 45.7 in (1162 mm) |
| Overall Width, Wide Tread | 52 in (1322 mm) |
| Height, Standard Mast – Lowered | 86 in (2170 mm) |
| Height, Standard Mast – Extended with LBR | 147 in (3715 mm) |
| Height, Standard Mast – Extended without LBR | 154 in (3904 mm) |
| Height, Standard Overhead Guard | 87.7 in (2228 mm) |
| Height, Optional Overhead Guard | 83.8 in (2128 mm) |
| Length, Center of Wheel to Face of Forks | 18.5 in (471 mm) |
| Wheelbase | 63.9 in (1623 mm) |
| Ground Clearance, Center of Wheelbase NL | 7.5 in (190 mm) |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL 84/127) NL | 8170 lb (3705 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL 84/127) RL | 12170 lb (5520 kg) |
| Axle Loading, Static Front/Rear NL | 3855/4311 lb (1748/1955 kg) |
| Axle Loading, Static Front/Rear RL | 10518/1648 lb (4770/747 kg) |
Power / Engine 8 specs
| Travel Speed, Powershift Transmission RL/NL | 11.4/11.6 mph (18.4/18.6 km/h) |
|---|---|
| Drawbar Pull, Standard Transmission @ 1 mph RL/NL | 4186/2282 lb (1899/1035 kg) |
| Gradeability, Standard Transmission @ 1 mph RL/NL | 35.9/31.5 Percent |
| Engine, Manufacturer/Model | PSI (2.4 L) |
| Transmission Type, Standard | Electronic Powershift |
| Standard Speeds, Forward – Reverse | 1-1 |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/475 v/cca |
