Forklift · Hyster

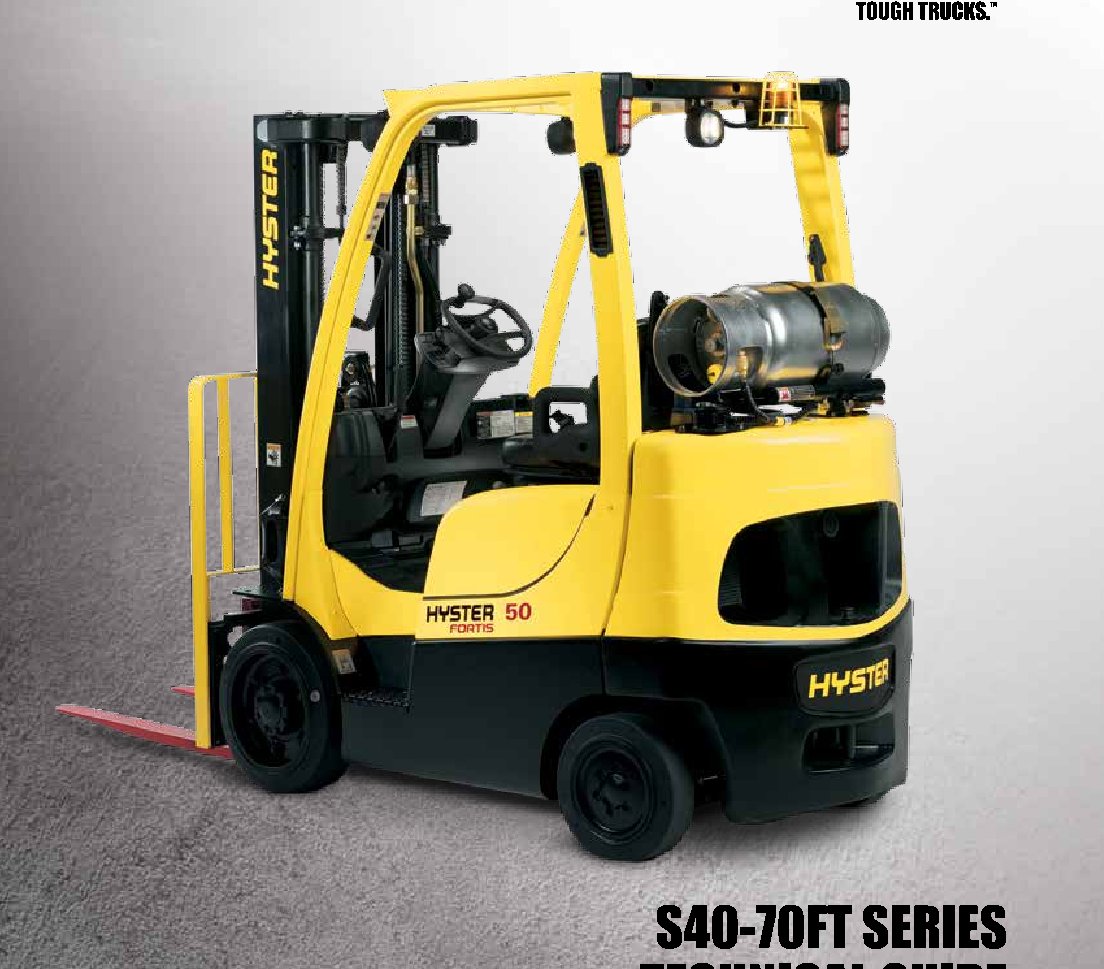

Hyster S60FT Specs
Quick-reference specifications for the Hyster S60FT forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 6000 lb2722 kg
- Gradeability, Standard Transmission @ 1 mph RL/NL
- 28/19 %
Performance 13 specs
| Rated Capacity | 6000 lb (2722 kg) |
|---|---|
| Load Center, Distance | 24.0 in (610 mm) |
| Mast Tilt Angles, Forward / Backward | 5F/5B degrees |
| Turning Radius, Minimum Outside (OTR) | 81.3 in (2066 mm) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 104/108 ft/min (.53/.55 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 102/106 ft/min (.52/.54 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 100/104 ft/min (.51/.53 m/s) |
| Lift Speed, Optional 4-Stage FFL RL/NL | 120/124 ft/min (.61/.63 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 104/93 ft/min (.53/.47 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 98/83 ft/min (.50/.42 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 114/95 ft/min (.58/.48 m/s) |
| Lowering Speed, Optional 4-Stage FFL RL/NL | 108/73 ft/min (.55/.37 m/s) |
| Maximum drawbar pull RL/NL | 5234/1821 lb (2374/826 kg) |
Dimensions 15 specs
| Step Height | 13.8 in (350 mm) |
|---|---|
| Tire Type – Cushion, Solid, Pneumatic | Cushion |
| Lift Height, Top of Fork (TOF) | 126 in (3209 mm) |
| Forks, Thickness x Width x Length | 2.0 X 4.9 X 42 in (50 X 125 X 1067 mm) |
| Fork Spread, Outside Dimensions | 38.3 in (974 mm) |
| Length To Face of Forks | 93.4 in (2373 mm) |
| Overall Width, Standard Tread | 43.6 in (1108 mm) |
| Overall Width, Wide Tread | 48.9 in (1242 mm) |
| Height, Standard Mast – Lowered | 87 in (2185 mm) |
| Height, Standard Mast – Extended with LBR | 175 in (4435 mm) |
| Height, Standard Mast – Extended without LBR | 152 in (3855 mm) |
| Height, Standard Overhead Guard | 84 in (2128 mm) |
| Height, Optional Overhead Guard | 82 in (2061 mm) |
| Length, Center of Wheel to Face of Forks | 15.8 in (402 mm) |
| Tire Size, Front | 21 X 8 x 15 |
Weight 4 specs
| Weight, Standard Truck (2-Stg. LFL) NL | 9768 lb (4431 kg) |
|---|---|
| Weight, Standard Truck (2-Stg. LFL) RL | 15767 lb (7152 kg) |
| Axle Loading, Static Front / Rear NL | 3474/6294 lb (1576/2855 kg) |
| Axle Loading, Static Front / Rear RL | 13718/2049 lb (6222/929 kg) |
Power / Engine 4 specs
| Power Type – LPG, Diesel, Dual Fuel | LPG Dual Fuel LPG |
|---|---|
| Travel Speed, Powershift Transmission RL/NL | 10.6/11.2 mph (17.0/18.0 km/h) |
| Drawbar Pull, Standard Transmission @ 1 mph RL/NL | 4372/1821 lb (1983/826 kg) |
| Gradeability, Standard Transmission @ 1 mph RL/NL | 28/19 % |
