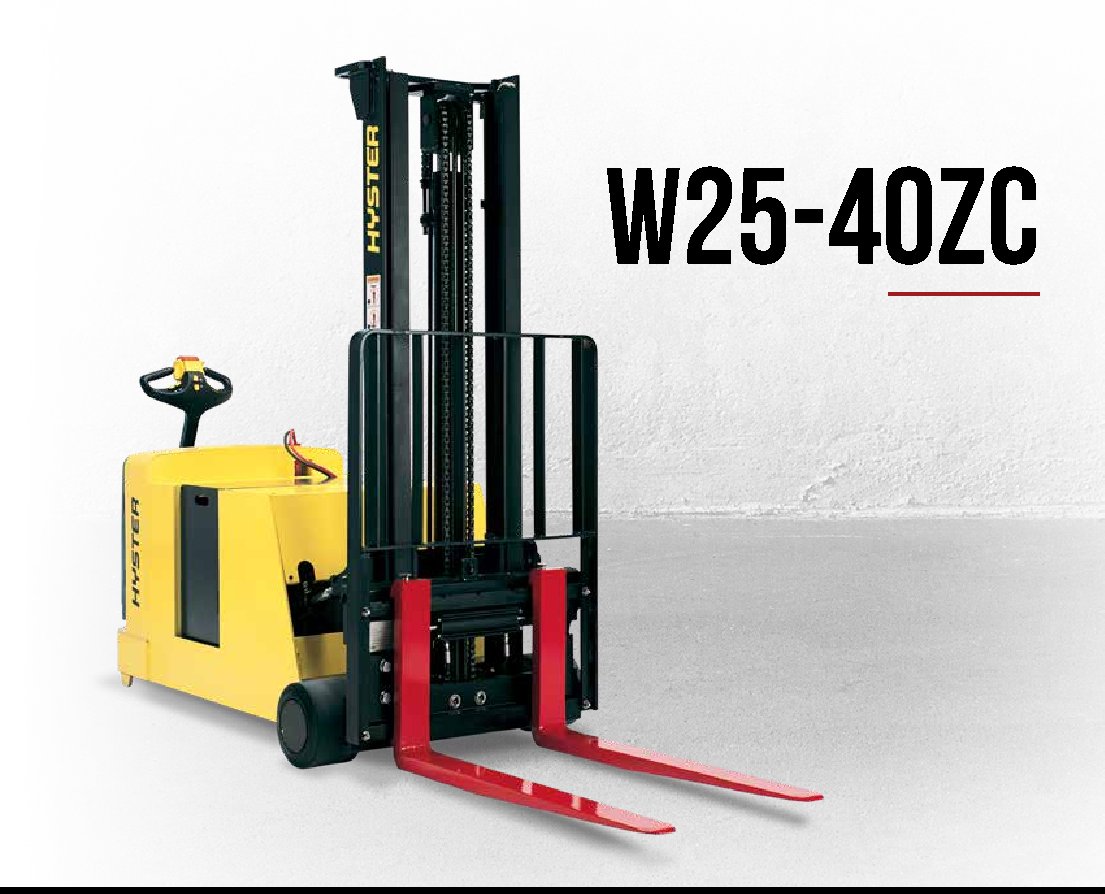

Hyster W40ZC Specs
Quick-reference specifications for the Hyster W40ZC forklift, taken from the manufacturer’s spec sheet.
- Capacity, rated
- 4,000 lb1,820 kg
- Gradeability
- 10.00 %
Performance 11 specs
| Capacity, rated | 4,000 lb (1,820 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Tilt of mast – backward / forward | 5 / 4 degrees |
| Turning radius, minimum outside | 80.0 in (1,803 mm) |
| Travel speed, no load | 3.1 mph (5.0 km/h) |
| Travel speed, rated load | 2.7 mph (4.3 km/h) |
| Lift speed, std. no load | 36.0 ft/min (0.18 m/s) |
| Lift speed, std. rated load | 22.0 ft/min (0.11 m/s) |
| Lowering speed, std. no load | 60.0 ft/min (0.30 m/s) |
| Lowering speed, std. rated load | 78.0 ft/min (.38 m/s) |
| Gradeability | 10.00 % |
Dimensions 12 specs
| Tire type, cushion, solid, pneumatic, etc. | Cushion |
|---|---|
| Standard free-lift (TOF) | 6.0 in (152 mm) |
| Maximum carriage width | 33.7 in (857 mm) |
| Forks, width / thickness / length | 4.0 in / 1.75 in / 42.0 in (100 mm / 44 mm / 1,067 mm) |
| Fork spread (outside dimensions) | 30.4 in (773 mm) |
| Length to face of forks | 79.5 in (2,020 mm) |
| Overall width (standard tires) | 38.3 in (973 mm) |
| Lowered overall height (LOH) | 83.0 in (2,108 mm) |
| Maximum fork height (MFH) | 122 in (3,099 mm) |
| Size of tire, drive | 10.0 x 5.0 in / Poly (254 x 127 mm) |
| Wheelbase | 61.0 in (1,549 mm) |
| Ground clearance, no load center wheelbase | 2.8 in (69 mm) |
Weight 1 spec
| Axle load, no load drive | 3,123 lb (1,420 kg) |
|---|
Power / Engine 7 specs
| Power type | 24 V – Electric |
|---|---|
| Total approximate weight without battery | 5,496 lb (2,493 kg) |
| Axle load, load with minimum battery | 2,973 lb (1,351 kg) |
| Battery, type | Lead acid |
| Battery, volts / ampere hours | 24 / 510 V/ah |
| Battery, minimum weight | 600 lb (273 kg) |
| Traction motor control method | Transistor |
