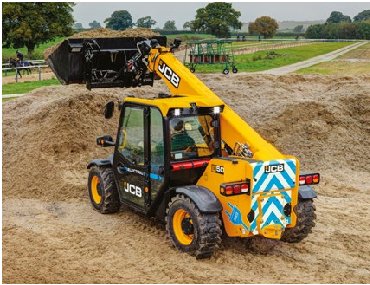

JCB 505-20E Specs

Quick-reference specifications for the JCB 505-20E telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Maximum lift capacity: 5,500 lb2500 kg
Maximum forward reach (to front of carriage): 11-0 ft3.5 m
Weight: 11,464 lb5200 kg

Performance 8 specs

Maximum lift capacity	5,500 lb (2500 kg)
Lift capacity to full height	3,000 lb (1,360 kg)
Lift capacity at full reach	1,650 lb (748 kg)
Maximum forward reach (to front of carriage)	11-0 ft (3.5 m)
Traction Max speed	6000 rpm
Forward Speed	9 mph (15 kph)
Reverse Speed	9 mph (15 kph)
Tires	Industrial 12×16.5

Dimensions 13 specs

Lift height	20-0 ft (6.0 m)
Carriage roll back angle	11 degrees
Carriage dump angle	114 degrees
Overall height	6-2 ft-in (1.89 m)
Overall width (over tires)	6-0 ft-in (1.84 m)
Inside width of cab	2-10 ft-in (0.88 m)
Front track	5-0 ft-in (1.53 m)
Wheelbase	7-10 ft-in (2.39 m)
Overall Length to front tires	11-1 ft-in (3.38 m)
Overall length to front carriage	13-1 ft-in (4.0 m)
Ground clearance	0-8 ft-in (22 cm)
Front wheel center to carriage	1-11 ft-in (0.6 m)
Outside turn radius (over tires)	3.7 ft-in

Weight 1 spec

Weight	11,464 lb (5200 kg)

Power / Engine 4 specs

Battery type	Lithium-ion
System voltage	96 V
Traction Motor power	23 HP (17 kW)
Traction Peak torque	220 Nm

Hydraulics / Fluids 11 specs

Hydraulic Motor power	30 HP (22 kW)
Hydraulic Max speed	3000 rpm
Hydraulic Peak torque	130 Nm
Operating System Pressure	3553 psi (245 bar)
Max flow at system pressure	17 gal/min (65 l/min)
Auxiliary Flow	21 gal/min (80 l/min)
Boom raise	9.9 Seconds
Boom lower	6.2 Seconds
Boom extend	10.3 Seconds
Boom retract	10.0 Seconds
Hydraulic system	11.8 gal (45 l)
