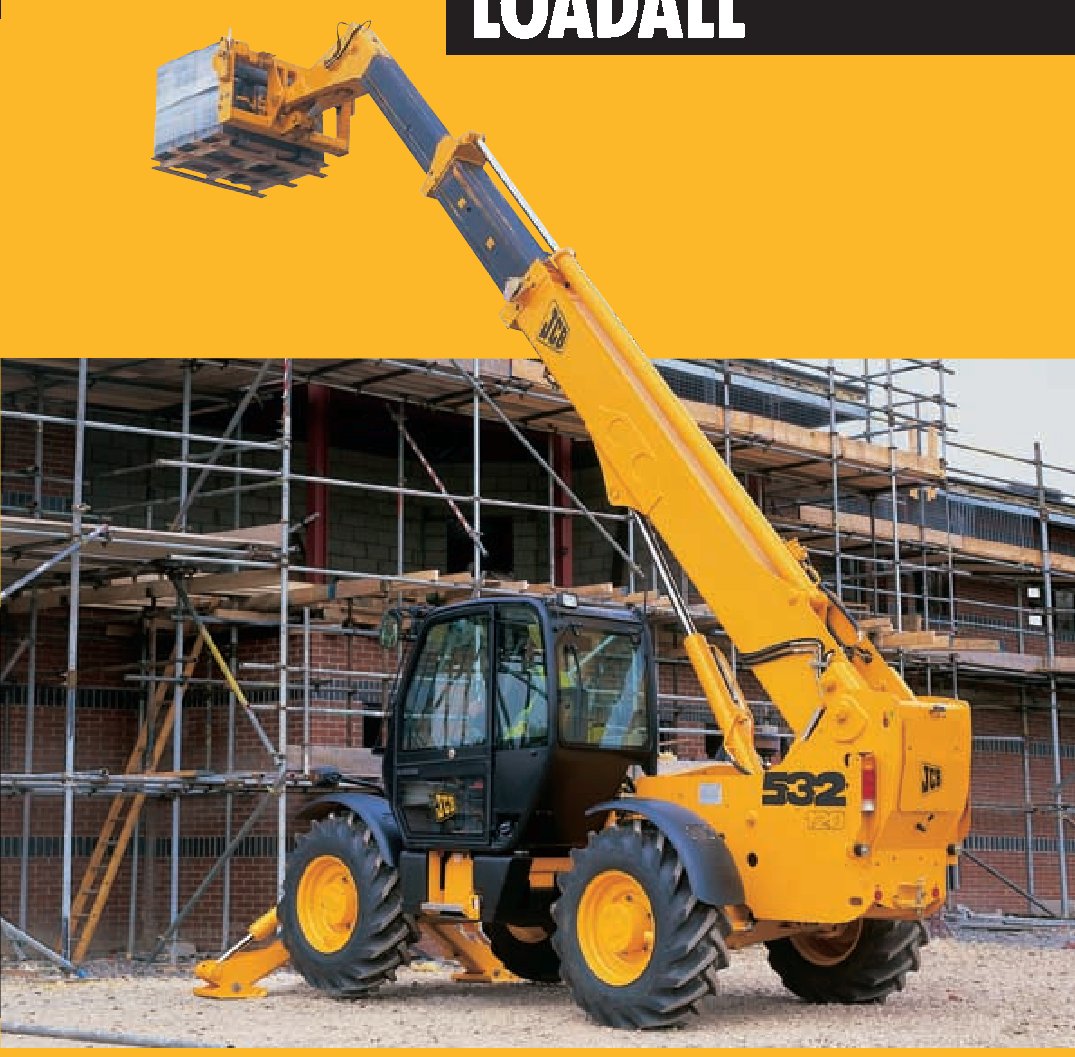

Telehandler · JCB
JCB 532-120 Specs
Quick-reference specifications for the JCB 532-120 telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 7055 lb3200 kg
- Reach at maximum lift height
- 4 ft 9 in1.44 m
- Maximum forward reach
- 26 ft 3 in8.0 m
- Weight
- 20150 lb9140 kg
Performance 6 specs
| Maximum lift capacity | 7055 lb (3200 kg) |
|---|---|
| Lift capacity to full height | 7055 lb (3200 kg) |
| Lift capacity at full reach | 2756 lb (1250 kg) |
| Reach at maximum lift height | 4 ft 9 in (1.44 m) |
| Maximum forward reach | 26 ft 3 in (8.0 m) |
| Tyres | 15.5/80-24 |
Dimensions 15 specs
| Overall height | 8 ft 6 in (2.59 m) |
|---|---|
| Overall width (over tyres) | 7 ft 9 in (2.35 m) |
| Inside width of cab | 3 ft 1 in (0.94 m) |
| Front track | 6 ft 3 in (1.90 m) |
| Wheelbase | 9 ft 0 in (2.75 m) |
| Overall length to front tyres | 15 ft 10 in (4.83 m) |
| Overall length to front carriage | 19 ft 2 in (5.84 m) |
| Ground clearance | 1 ft 4 in (0.40 m) |
| Lift height | 39 ft 4 in (12.0 m) |
| Placing height | 37 ft 6 in (11.42 m) |
| Width over fully extended stabilizers | 8 ft 11 in (2.73 m) |
| Overall length to stabilizers – retracted | 17 ft 8 in (5.39 m) |
| Overall length to stabilizers – extended | 17 ft 10 in (5.42 m) |
| Outside turn radius (over tyres) | 13 ft 2 in (4.0 m) |
| Departure angle | 35° |
Weight 1 spec
| Weight | 20150 lb (9140 kg) |
|---|
Hydraulics / Fluids 3 specs
| Fuel tank | 125ltr (27.5 gal) |
|---|---|
| Hydraulic tank | 131ltr (28.8 gal) |
| Coolant | 23ltr (5.1 gal) |
