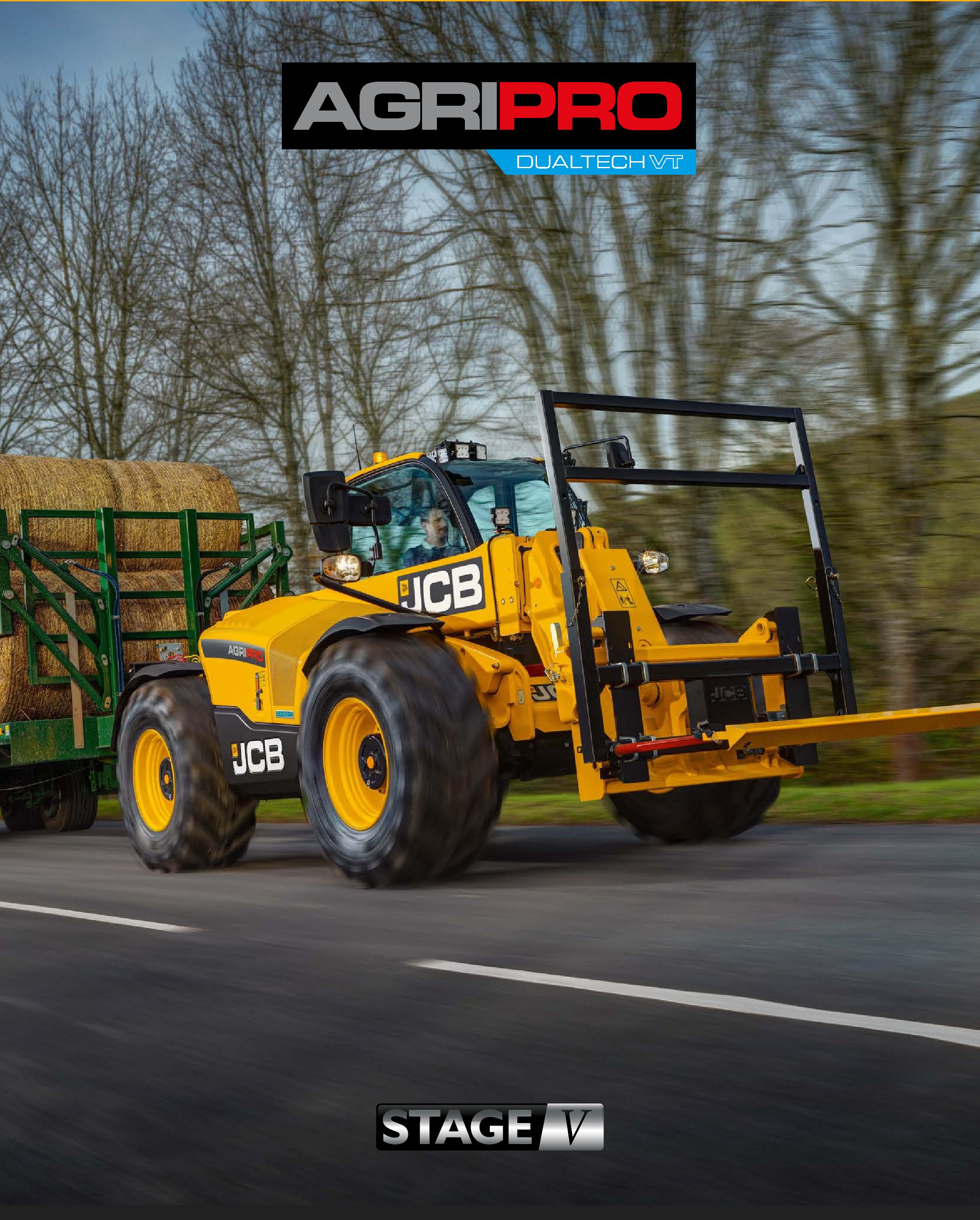

JCB 542-70 AGRI PRO Specs

Quick-reference specifications for the JCB 542-70 AGRI PRO telehandler, compiled from published specifications.

Maximum Lift Capacity: 9,259 lb4,200 kg
Maximum Lift Height: 23 ft 1 in7.04 m
Maximum Forward Reach: 12 ft 2 in3.71 m
Operating Weight: 19,488 lb8,840 kg

Performance 8 specs

Maximum Engine Power	173 hp (129 kW)
Maximum Torque	690 Nm @ 1,500 rpm
Top Road Speed	31 mph (50 km/h)
Hydrostatic Working Speed	22 km/h
Maximum Lift Capacity	9,259 lb (4,200 kg)
Lift Capacity at Full Height	2,750 kg
Maximum Lift Height	23 ft 1 in (7.04 m)
Maximum Forward Reach	12 ft 2 in (3.71 m)

Dimensions 4 specs

Overall Height	8 ft 2 in (2.49 m)
Overall Width	7 ft 8 in (2.34 m)
Transport Length	16 ft 8 in (5.07 m)
Turning Radius (outside)	12 ft 2 in (3.7 m)

Weight 2 specs

Operating Weight	19,488 lb (8,840 kg)
Standard Tyres	500/70 R24

Power / Engine 3 specs

Engine Displacement	4.8 L
Number of Cylinders	4
Cylinder Bore x Stroke	106 x 135 mm

Hydraulics / Fluids 2 specs

Hydraulic Pump Type	160 L/min variable displacement piston pump
Main Hydraulic System Pressure	260 bar
