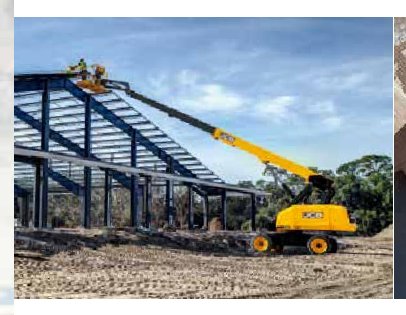

- JCB T65D
Telehandler · JCB
JCB T65D Specs
Quick-reference specifications for the JCB T65D telehandler, taken from the manufacturer’s spec sheet.
- Platform capacity – Unrestricted
- 661 lb300 kg
- Max. working height
- 71-11 ft-in21.92 m
- Weight
- 28171 lb12,778 kg
- Gradeability (stowed)
- 40 %
Performance 18 specs
| Tail swing | 4-4 ft-in (1.33 m) |
|---|---|
| Rated speed | 2200 RPM |
| Drive type | 4WD |
| Steering type | 2WS |
| Max. driving speed (stowed) | 4.5 mph (7.2 km/h) |
| Max. driving speed (raised) | 0.68 mph (1.1 km/h) |
| Gradeability (stowed) | 40 % |
| Axle oscillation | 10 degrees |
| System voltage | 12 V |
| Platform occupants | 3 |
| Platform capacity – Unrestricted | 661 lb (300 kg) |
| Platform capacity – Restricted | 1000 lb (454 kg) |
| Platform rotation | 180 degrees |
| Machine rotation | 360 degrees |
| Turning radius (inside) | 9-10 ft-in (3 m) |
| Turning radius (outside) | 16-9 ft-in (5.1 m) |
| Max. working height | 71-11 ft-in (21.92 m) |
| Max. horizontal outreach | 56-6 ft-in (17.22 m) |
Dimensions 11 specs
| Length (stowed) | 33-1 ft-in (10.08 m) |
|---|---|
| Width (stowed) | 7-10 ft-in (2.40 m) |
| Height (stowed) | 9-3 ft-in (2.81 m) |
| Wheelbase | 8-2 ft-in (2.49 m) |
| Ground clearance | 14.2 in (0.36 m) |
| Platform length | 8-0 ft-in (2.43 m) |
| Platform width | 2-9 ft-in (0.84 m) |
| Number of access doors/rails | 3 |
| Jib length | 5-0 ft-in (1.53 m) |
| Jib range | 135 degrees |
| Max. platform height | 65-4 ft-in (19.92 m) |
Weight 1 spec
| Weight | 28171 lb (12,778 kg) |
|---|
Power / Engine 5 specs
| Make | JCB ECOMAX |
|---|---|
| Emissions | T4 Final |
| Power | 74 hp (55 kW) |
| Battery size | 110 Ah |
| Number of batteries | 2 |
Hydraulics / Fluids 2 specs
| Fuel tank capacity | 33 US Gal (125 L) |
|---|---|
| Hydraulic reservoir | 39.6 US Gal (150 L) |
