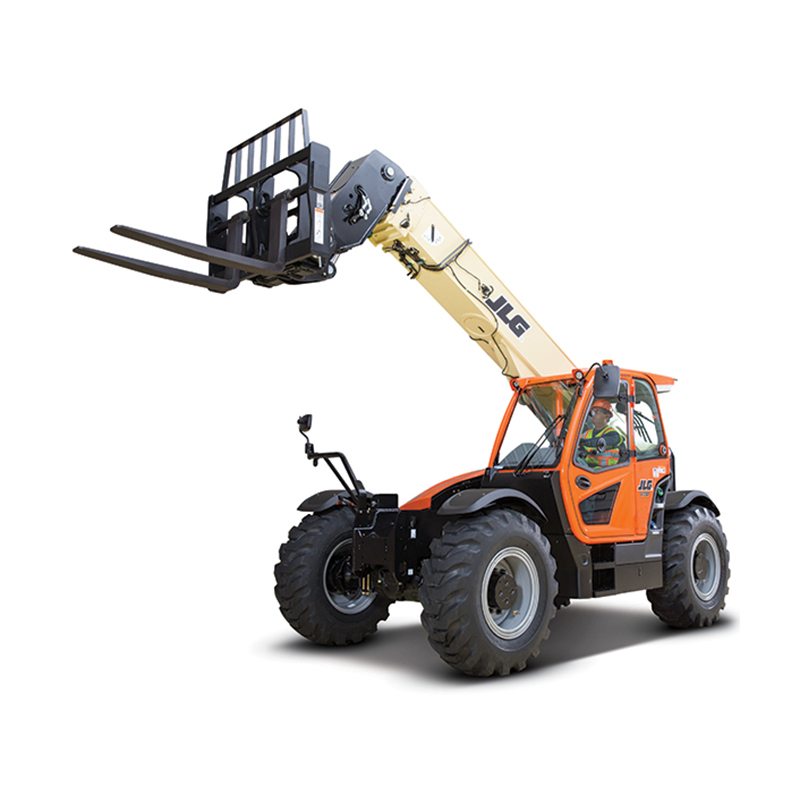

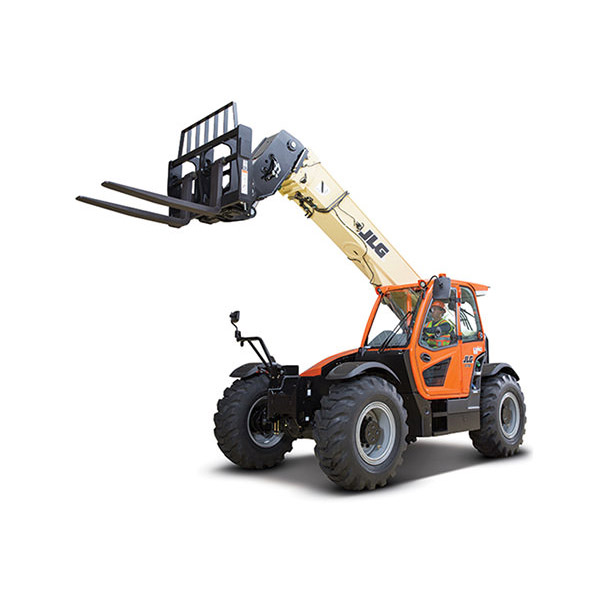

JLG 1732 Specs
Quick-reference specifications for the JLG 1732 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 16,755 lb7,600 kg
- Maximum Lift Height
- 31 ft 8 in9.65 m
- Maximum Forward Reach
- 18 ft 7 in5.66 m
- Operating Weight
- 31,145 lb14,127 kg
Performance 12 specs
| Rated Capacity | 16,755 lb (7,600 kg) |
|---|---|
| Maximum Forward Reach | 18 ft 7 in (5.66 m) |
| Load at Max Reach | 5,500 lb (2,495 kg) |
| Frame Leveling | 8 degrees |
| Lift Speed (boom retracted) – Down | 10.9 sec |
| Boom Speed – Extended | 13.2 sec |
| Boom Speed – Retracted | 10.9 sec |
| Top Travel Speed | 20 mph (32 kph) |
| Drawbar Pull (loaded) | 23,000 lb (102 kN) |
| Outside Turning Radius | 13 ft 2 in (4.01 m) |
| Bale Clamp, Square Bale | 10,000 lb Capacity (4,536 kg) |
| Steel Coil Handler | 16,750 lb Capacity (7,598 kg) |
Dimensions 3 specs
| Maximum Lift Height | 31 ft 8 in (9.65 m) |
|---|---|
| Load at Max Height | 9,900 lb (4,491 kg) |
| Tire Handler | 7,000 lb Capacity (3,175 kg) |
Weight 1 spec
| Operating Weight | 31,145 lb (14,127 kg) |
|---|
Power / Engine 3 specs
| Make and Model | Deutz TCD 3.6 L |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 220 cu in (3.6 L) |
Hydraulics / Fluids 1 spec
| Hydraulic System-Implement – Capacity | 77 gal (292 L) |
|---|
