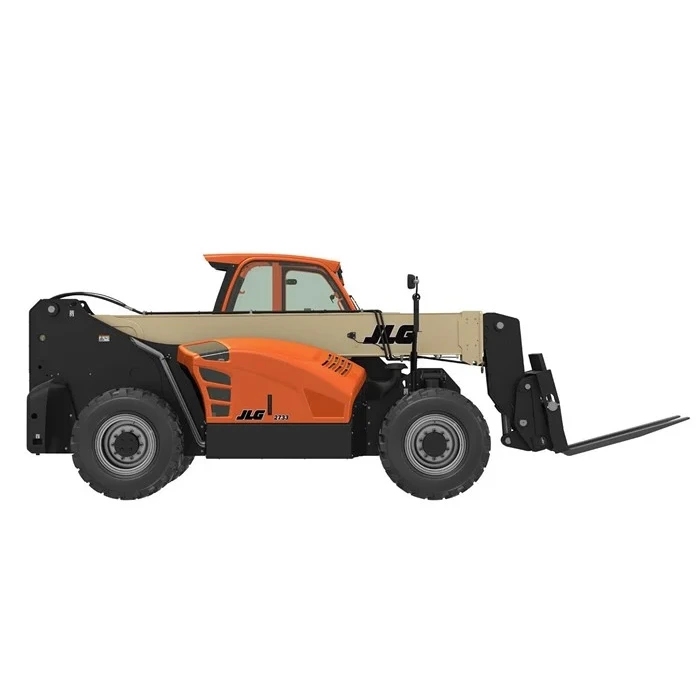

JLG 2733 Specs
Quick-reference specifications for the JLG 2733 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 26,600 lb12,065 kg
- Maximum Lift Height
- 33 ft 1 in10.1 m
- Maximum Forward Reach
- 17 ft 7 in5.37 m
- Operating Weight
- 38,775 lb17,555 kg
Performance 9 specs
| Rated Capacity | 26,600 lb (12,065 kg) |
|---|---|
| Maximum Forward Reach | 17 ft 7 in (5.37 m) |
| Load at Max Reach | 8000 lb (3628 kg) |
| Frame Leveling | 8 Degrees |
| Lift Speed (boom retracted) Down | 11 sec |
| Boom Speed Extended | 12 sec |
| Boom Speed Retracted | 14 sec |
| Top Travel Speed (4-Speed) | 17 mph (28 kph) |
| Outside Turning Radius | 176 in (4.5 m) |
Dimensions 2 specs
| Maximum Lift Height | 33 ft 1 in (10.1 m) |
|---|---|
| Load at Max Height | 15,500 lb (7030 kg) |
Weight 1 spec
| Operating Weight | 38,775 lb (17,555 kg) |
|---|
Power / Engine 5 specs
| Make and Model | Cummins QSB4.5L Tier 4 F |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 275 cu in (4.5 L) |
| Gross Power Basic | 160 hp (119 kW) |
| Maximum Torque @ 1500 rpm | 460 lb-ft (624 Nm) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 43 gal (163 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 67 gal (525 L) |
