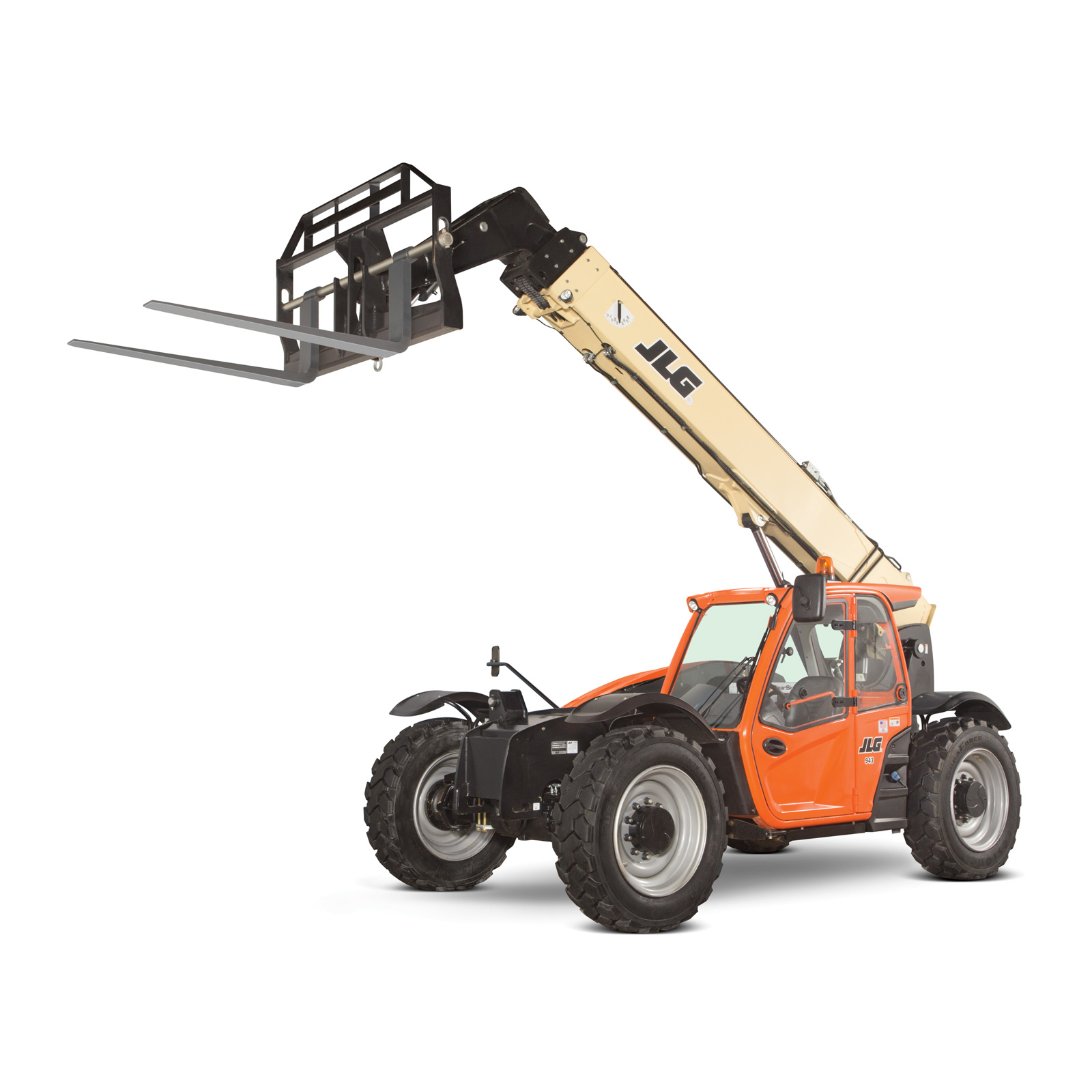

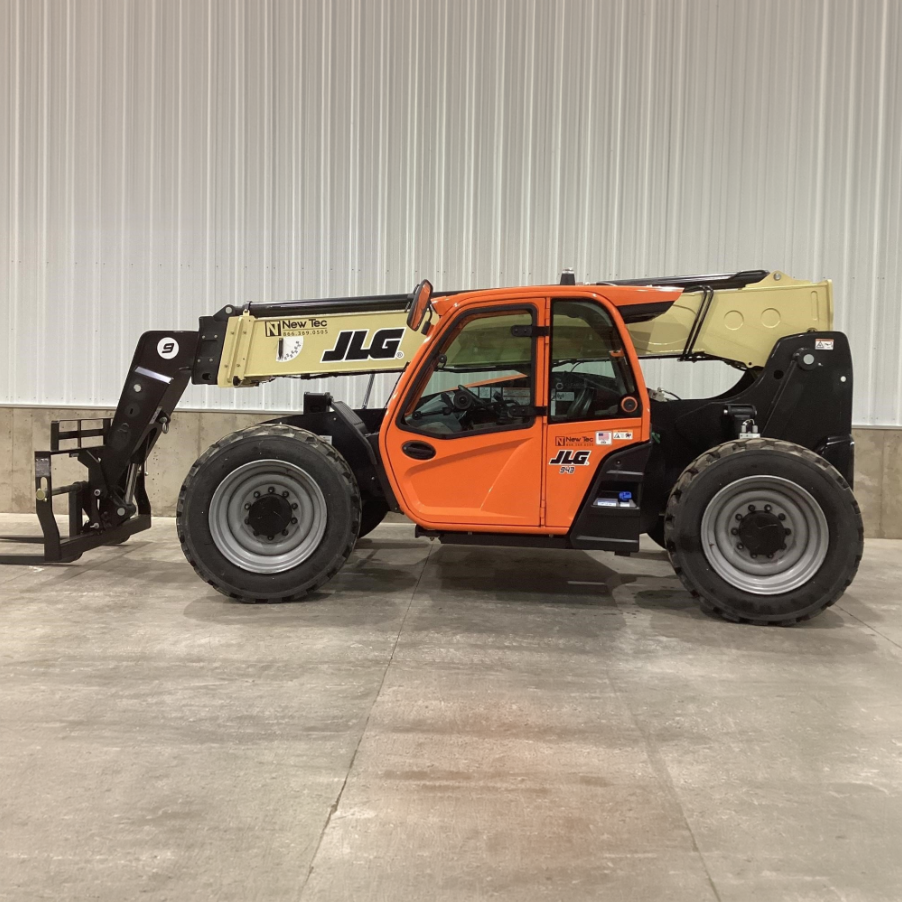

JLG 943 Specs
Quick-reference specifications for the JLG 943 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 9,000 lb4,082 kg
- Maximum Lift Height
- 43 ft13.1 m
- Maximum Forward Reach
- 30 ft 5 in9.3 m
- Operating Weight
- 24,912 lb11,300 kg
Performance 10 specs
| Rated Capacity | 9,000 lb (4,082 kg) |
|---|---|
| Maximum Forward Reach | 30 ft 5 in (9.3 m) |
| Load at Max Reach | 1,200 lb (544 kg) |
| Frame Leveling | 10 Degrees |
| Lift Speed (boom retracted) Down | 9 seconds |
| Boom Speed Extend | 15 seconds |
| Boom Speed Retract | 13 seconds |
| Top Travel Speed (4-Speed) | 19 mph (31 kph) |
| Drawbar Pull (loaded) | 22,751 lb (101.2 kN) |
| Outside Turning Radius | 12 ft (3.67 m) |
Dimensions 2 specs
| Maximum Lift Height | 43 ft (13.1 m) |
|---|---|
| Load at Max Height | 7,000 lb (3,175 kg) |
Weight 1 spec
| Operating Weight | 24,912 lb (11,300 kg) |
|---|
Power / Engine 3 specs
| Make and Model | Cummins F3.8L |
|---|---|
| Displacement | 232-cu in (3.8 L) |
| Gross Power Basic | 110 hp (83 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 38.3 gal (145 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 40 gal (151.4 L) |
