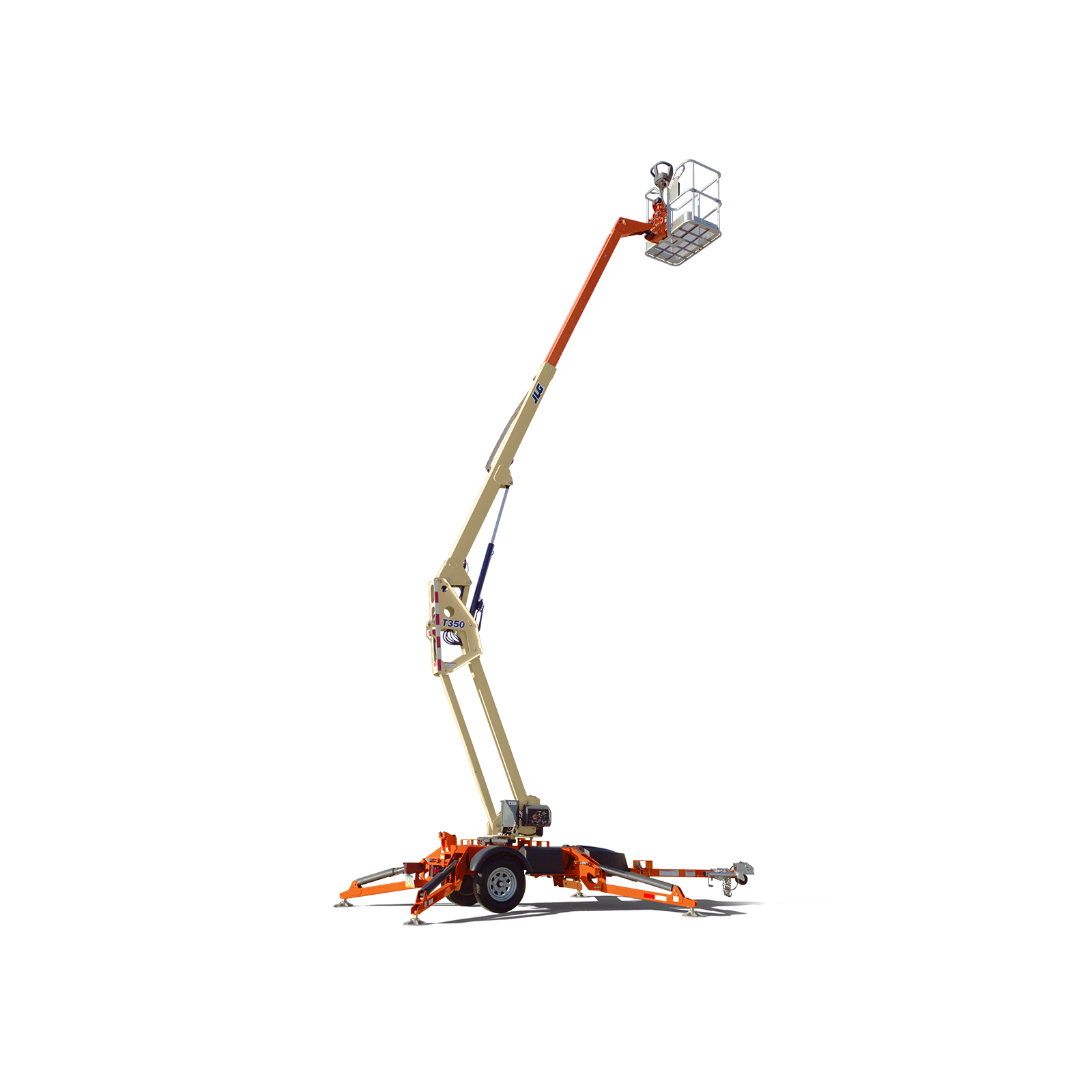

JLG T350 Specs
Quick-reference specifications for the JLG T350 boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 34 ft 5 in10.5 m
- Weight
- 3,600 lb1,633 kg
Performance 11 specs
| Horizontal Outreach | 18 ft 9 in (5.7 m) |
|---|---|
| Towing Speed | 65 mph (105 km/h) |
| Platform Capacity | 500 lb (227 kg) |
| Centerline to Platform Edge | 20 ft (6.1 m) |
| Swing | 410 Degrees Non-Continuous |
| Platform Capacity w/Rotator (Optional) | 440 lb (200 kg) |
| Material Hook Capacity | 500 lb (227 kg) |
| Leveling Capability | 11 Degrees |
| Towing Speed Rating | 65 mph (105 km/h) |
| Tongue Weight | 250 lb (114 kg) |
| Platform, Side Entry | 30 x 48 in (0.76 x 1.22 m) |
Dimensions 8 specs
| Platform Height | 34 ft 5 in (10.5 m) |
|---|---|
| Platform Width | 30 in (0.76 m) |
| Platform Length | 48 in (1.22 m) |
| Machine Width | 5 ft 2.75 in (1.6 m) |
| Outrigger Footprint Length | 11 ft 7 in (3.5 m) |
| Outrigger Footprint Width | 10 ft 5 in (3.2 m) |
| Machine Height | 6 ft 7 in (2.0 m) |
| Machine Length | 21 ft 9.5 in (6.6 m) |
Weight 2 specs
| Weight | 3,600 lb (1,633 kg) |
|---|---|
| Max. Ground Bearing Pressure | 23 psi (1.62 kg/cm²) |
Power / Engine 2 specs
| Power | 24 V DC |
|---|---|
| Gasoline Engine | Honda GX 270 |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 4.0 gal (15.14 L) |
|---|
