Compact Crawler Boom · JLG

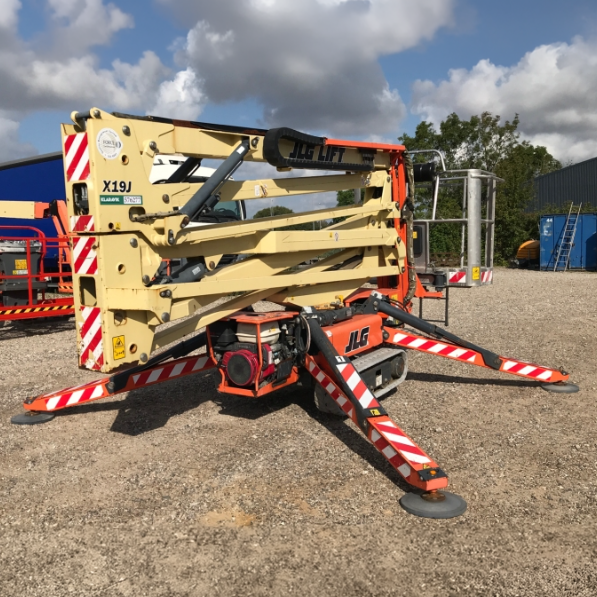

JLG X19J Specs

Quick-reference specifications for the JLG X19J boom lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Working Height: 18.67 m
Gradeability: 38%

Performance 8 specs

Working Height	18.67 m
Swing (non continuous)	360°
Jib – range of articulation (+/-)	83° (+0° / -83°)
Max. drive speed (single speed m/c) Petrol	1.7 Km/h
Gradeability	38%
Maximum operating slope	11°
Max. Approach / Depart angles	Front 21° / Rear 21°
MAX RATED WORKING LOAD	120 KG

Dimensions 8 specs

Jib – overall length	1.43 m
Platform size (standard 2 persons)	0.69 m x 1.34 m
Stowed width (with std. 2P platform)	1.48 m
Stowed width (without platform)	0.79 m
Stowed height (on tracks)	1.98 m
Stowed length (on tracks)	4.47 m
Outrigger footprint	2.89 m x 2.88 m
Width of Undercarriage (Retracted/Extended)	0.79 m / 1.09 m

Weight 2 specs

Machine weight (with standard platform)	2,080 kg
Max. ground bearing pressure (on outriggers)	1.94 kg/cm²
