Forklift · Linde

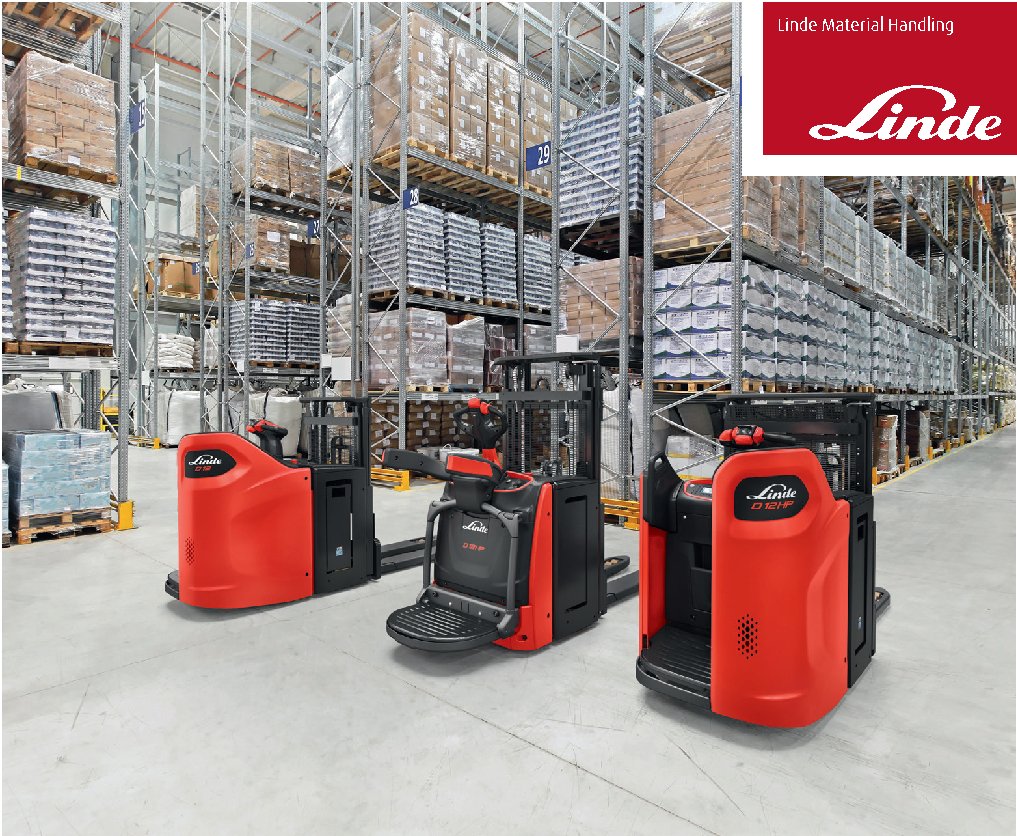

Linde D14SP Specs
Quick-reference specifications for the Linde D14SP forklift, from the manufacturer’s spec sheet and published specifications.
Performance 9 specs
| Load Capacity (single load) | 3,086 lb (1.4 t) |
|---|---|
| Load Capacity (dual pallet transport) | 4,409 lb (2.0 t) |
| Travel Speed with Load | 6.2 mph (10 km/h) |
| Travel Speed without Load | 7.5 mph (12 km/h) |
| Hoisting Speed with Load | 0.12 m/s |
| Hoisting Speed without Load | 0.23 m/s |
| Lowering Speed with Load | 0.385 m/s |
| Max Lifting Height | 6.31 ft (1.924 m) |
| Turning Radius | 7.50 ft (2.287 m) |
Dimensions 5 specs
| Tyre size, front | Ø 254 × 102 |
|---|---|
| Transport Length | 8.17 ft (2.489 m) |
| Transport Width | 2.59 ft (0.79 m) |
| Transport Height | 4.89 ft (1.49 m) |
| Wheelbase | 5.33 ft (1.625 m) |
Weight 2 specs
| Vehicle Weight | 3,753 lb (1.703 t) |
|---|---|
| Battery Weight | 650 lb (0.295 t) |
Power / Engine 3 specs
| Battery according to DIN 43531/35/36 A,B,C,no | 43 535 B/3PzS |
|---|---|
| Traction Motor | 4.0 hp (3 kW) |
| Hoist Motor | 2.7 hp (2 kW) |
Hydraulics / Fluids 1 spec
| Battery Voltage | 24 V |
|---|
