Forklift · Linde

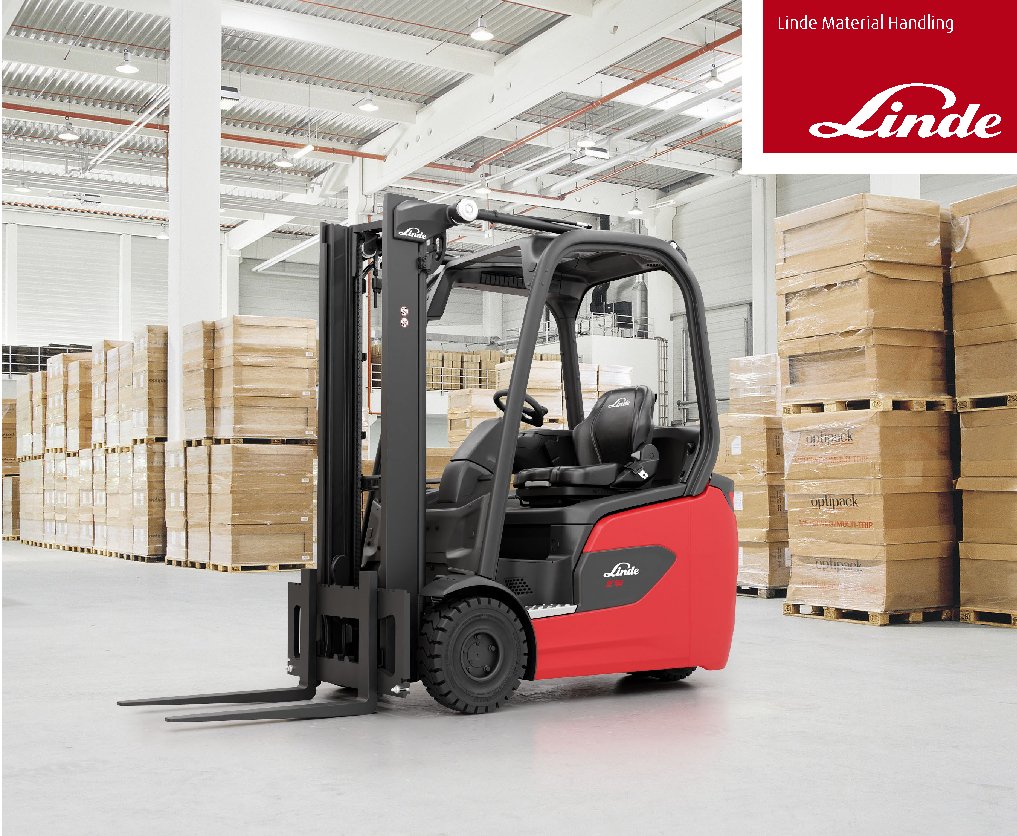

Linde E14 Specs
Quick-reference specifications for the Linde E14 forklift, from the manufacturer’s spec sheet and published specifications.
Performance 5 specs
| Fork carriage to ISO 2328, class/type A, B | 2A |
|---|---|
| Max Travel Speed (loaded/unloaded) | 12.4 / 12.4 mph (20 / 20 km/h) |
| Lifting Speed (loaded/unloaded) | 0.57 / 0.61 m/s |
| Lowering Speed (loaded) | 0.58 m/s |
| Turning Radius | 1,491 mm (4.89 ft) to 1,707 mm (5.60 ft) |
Dimensions 8 specs
| Overall Length | 2,761 mm (9.06 ft) to 2,977 mm (9.77 ft) |
|---|---|
| Overall Width | 3.56 ft (1,086 mm) |
| Mast Height (lowered) | 7.03 ft (2,142 mm) |
| Mast Height (extended) | 11.98 ft (3,653 mm) |
| Lift Height | 10.01 ft (3,050 mm) |
| Free Lift | 0.49 ft (150 mm) |
| Aisle Width (pallet 800×1200) | 10.86 ft (3,311 mm) |
| Overhead Guard Height | 6.74 ft (2,053 mm) |
Weight 2 specs
| Service Weight | 2,950 kg (6,503 lb) to 3,398 kg (7,490 lb) |
|---|---|
| Battery Weight | 1,561 lb (0.708 t) |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A, B, C, no | 43 531 A |
|---|---|
| Drive Motors | 2 x 7.04 hp (2 x 5.25 kW) |
| Lift Motor | 13.41 hp (10 kW) |
| Battery Voltage | 48 V |
Hydraulics / Fluids 2 specs
| Load Center Distance | 1.64 ft (500 mm) |
|---|---|
| Mast Tilt | 5.0° forward / 7.0° backward |
