Forklift · Linde

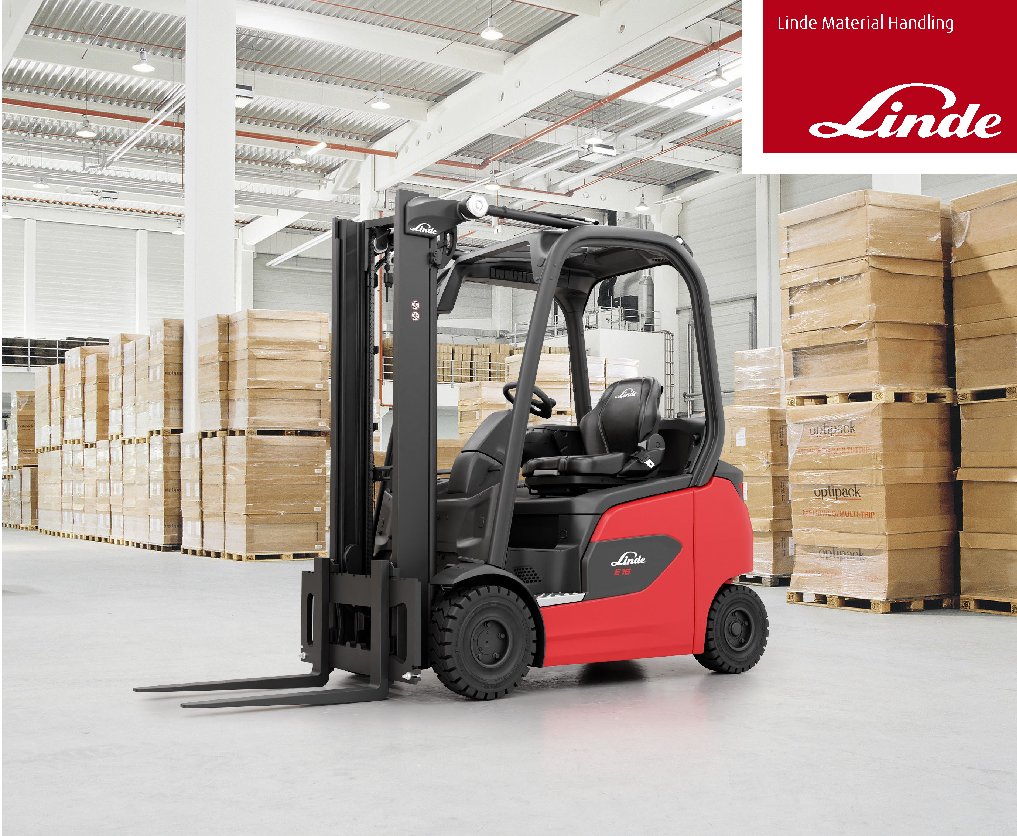

Linde E16P Specs
Quick-reference specifications for the Linde E16P forklift, from the manufacturer’s spec sheet and published specifications.
Performance 5 specs
| Fork carriage to ISO 2328, class/type A, B | 2A |
|---|---|
| Travel speed (with/without load) | 12.4 mph (20 km/h) |
| Hoisting speed (with/without load) | 0.5/0.6 m/s (1.64/1.97 ft/s) |
| Lowering speed (with load) | 0.58 m/s (1.90 ft/s) |
| Turning radius | 5.46 ft (1.664 m) |
Dimensions 5 specs
| Lift height (standard) | 10.01 ft (3.05 m) |
|---|---|
| Construction height | 7.02 ft (2,141 mm) |
| Overall width | 3.56 ft (1,086 mm) |
| Aisle width | 11.42 ft (3,479 mm) |
| Load center | 19.69 in (500 mm) |
Weight 2 specs
| Total weight | 4,925 lb (2.234 t) |
|---|---|
| Battery weight | 1,886 lb (0.856 t) |
Power / Engine 4 specs
| Battery according to DIN 43531/35/36 A, B, C, no | 43 531 A |
|---|---|
| Battery voltage | 48 V |
| Hoist motor | 10 kW |
| Load capacity | 3,527 lb (1.6 t) |
