Forklift · Linde

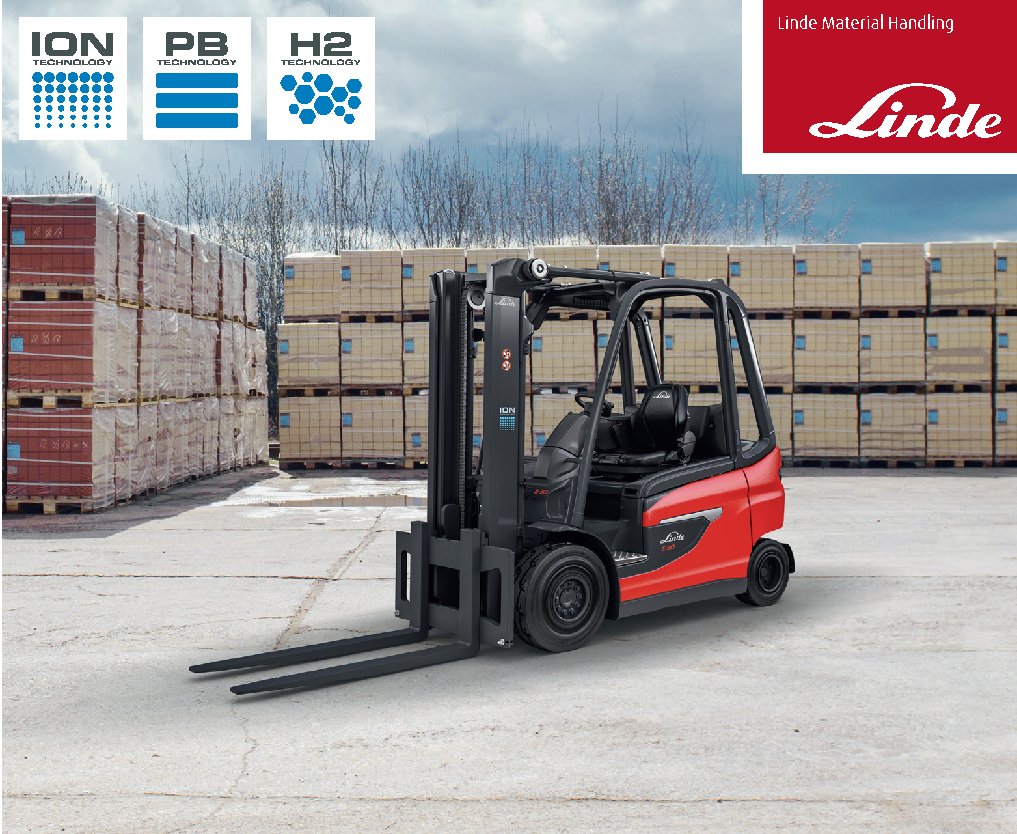

Linde E30-600H Specs
Quick-reference specifications for the Linde E30-600H forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 6,614 lb3,000 kg
- Operating Weight
- 9,090 lb4,126 kg
- Max Gradeability
- 26.3%
Performance 7 specs
| Fork carriage to ISO 2328, class / type A, B | 2A |
|---|---|
| Rated Capacity | 6,614 lb (3,000 kg) |
| Load Center | 23.6 in (600 mm) |
| Max Hoist Speed (with/without load) | 0.42 m/s / 0.51 m/s |
| Max Lower Speed (with load) | 0.56 m/s |
| Turning Radius | 6.26 ft (1.907 m) |
| Max Gradeability | 26.3% |
Dimensions 5 specs
| Tyre size, rear | 200 / 50-10 |
|---|---|
| Total Width | 48.3 in (1,228 mm) |
| Construction Height (mast collapsed) | 88.0 in (2,237 mm) |
| Max Lifting Height | 16.4 ft (5.0 m) |
| Overall Length (to fork face) | 94 in (2,381 mm) |
Weight 3 specs
| Operating Weight | 9,090 lb (4,126 kg) |
|---|---|
| Battery Weight | 3,437 lb (1,558 kg) |
| Total Weight (with battery) | 12,527 lb (5,684 kg) |
Power / Engine 4 specs
| Battery according to DIN 43531 / 35 / 36 A, B, C, no | 43 536 A |
|---|---|
| Battery Voltage | 80 V |
| Traction Motor | 24.1 hp (18 kW) |
| Hoist Motor | 29.5 hp (22 kW) |
