Linde H20T Specs

Quick-reference specifications for the Linde H20T forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Load capacity Q	2000 kg
Mast / fork carriage tilt, forward / backward a/b	6/10 º
Turning radius Wa	2105 mm
Travel speed, with / without load	18/18.5 km/h
Lifting speed, with/without load	0.57/0.58 m/s
Lowering speed, with / without load	0.59/0.45 m/s
Tractive force, with/without load, 60 minute rating	14200/9220 N
Service brake	Hydrostatic
Rated speed	2300 min–1
Type of drive control	Hydrostatic transmission
Noise level at operator’s ear	76 dB (A)

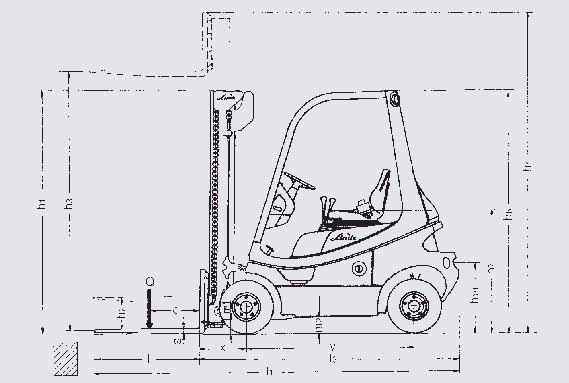

Load centre c	500 mm
Axle centre to fork face x	384 mm
Wheelbase y	1560 mm
Tyres, front / rear	SE/SE
Tyre size, front	200/50 – 10
Tyre size, rear	18 x 7 – 8
Track width, front b	945 mm
Track width, rear b	873 mm
Height of mast, lowered h	2100 mm
Free lift h	150 mm
Lift h	3050 mm
Height of mast, extended h	3658 mm
Height of overhead guard (cab) h	2070 mm
Height of seat / stand-on platform h	1000 mm
Towing coupling height h	560 mm
Overall length l	3346 mm
Length to fork face l	2346 mm
Overall width b1/b	1168 mm
Fork dimensions s/e/l	45 x 100 x 1000 mm
Fork carriage to DIN 15173, class /form A, B	2A
Width of fork carriage b	1040 mm
Ground clearance, mast m	77 mm
Ground clearance, centre of wheelbase m	122 mm
Aisle width, pallet 1000 x 1200 across forks Ast	3689 mm
Aisle width, pallet 800 x 1200 along forks Ast	3889 mm
Minimum pivot point distance b	630 mm

Service weight	3110 kg
Axle load with load, front / rear	4380/730 kg
Axle load without load, front / rear	1280/1830 kg

Manufacturer of engine/type	VW/ADF
Engine rated power to ISO 1585	27 kW
Number of cylinders / displacement	4/1781 cm3
Fuel consumption to VDI	2.4 l/h

Working pressure for attachments	250 bar
Oil flow for attachments	18 l/min
