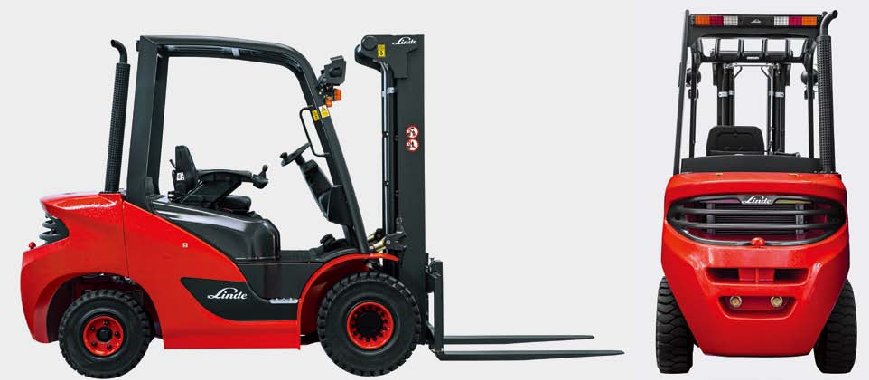

Linde H25D Specs

Quick-reference specifications for the Linde H25D forklift, taken from the manufacturer’s spec sheet.

Performance 12 specs

Load capacity	2.5 t
Load center	500 mm
Axle center to fork face	507 mm
Mast tilt, forward/backward	7/9 degrees
Turning radius	2410 mm
Travelling speed, with/without load	22/23 km/h
Lifting speed, with/without load	0.52/0.57 m/s
Lowering speed, with/without load	0.52/0.45 m/s
Tractive force, with/without load	18000/14000 N
Service brake	Mechanical/Hydraulic
Rated speed	2700 rpm
Type of drive control	Hydrostatic infinitely

Wheelbase	1700 mm
Tyre: SE=(superelastic), P=(pneumatic)	P
Tyre size, front	27×10-12
Track width, front	1070/950 mm
Height of mast, lowered	2240 mm
Free lift	150 mm
Lift	3050 mm
Height of mast, extended	3693 mm
Height of overhead guard (cabin)	2200 mm
Height of drive seat	1130 mm
Tow coupling height	660 mm
Length to fork face	2750 mm
Overall width	1310 mm
Fork dimensions sxexl	45 x 100 x 1000 mm
Fork carriage to DIN 15 173, Class/Form A,B	2A
Width of fork carriage	1150 mm
Ground clearance with load, center of wheelbase	161 mm
Aisle width, 1000 x 1200 across forks	4057 mm
Aisle width, 800 x 1200 along forks	4257 mm
Minimum pivoting point distance	597 mm

Service weight	4061 kg
Axle load with load, front/rear	5818 /743 kg
Axle load without load, front/rear	1840 / 2221 kg

Manufacturer of engine/type	Kubota/V2607
Engine rated power according to ISO 1585	36.5 kw
Number of cylinders/displacement	4/2615 cm3

Working pressure for attachments	185 bar
