- Linde H25T
Forklift · Linde

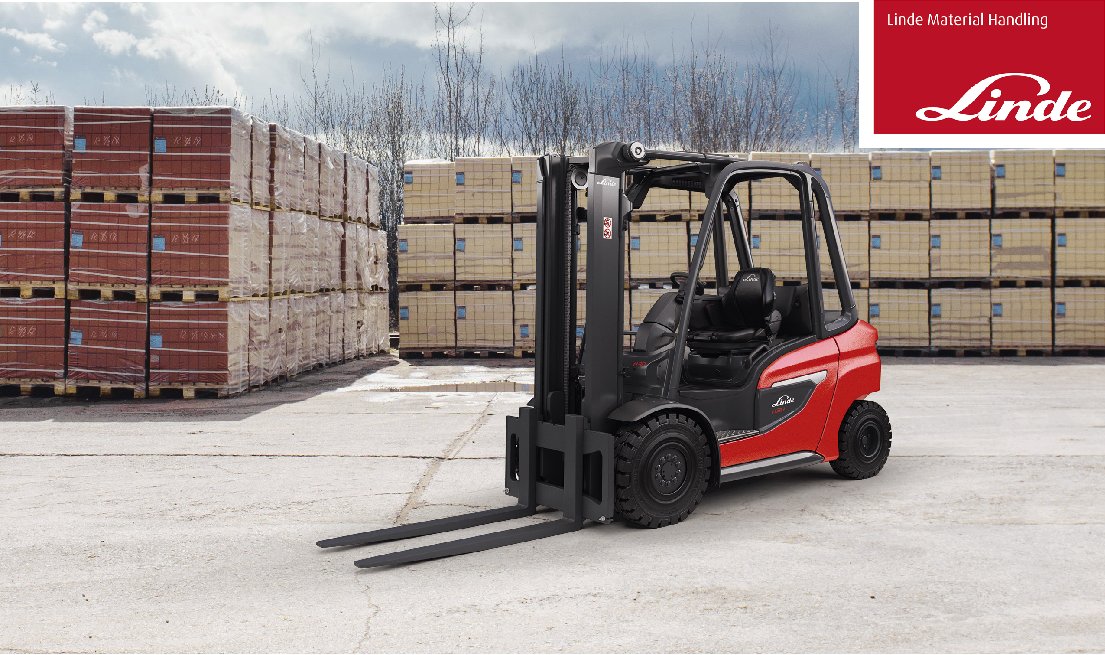

Linde H25T Specs
Quick-reference specifications for the Linde H25T forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 7,839 lb3,556 kg
Performance 8 specs
| Lifting Capacity (nominal load) | 5,000 lb (2,268 kg) |
|---|---|
| Travel Speed | 22 km/h |
| Hoisting Speed (with load) | 0.53 m/s |
| Hoisting Speed (without load) | 0.55 m/s |
| Lowering Speed (with load) | 0.56 m/s |
| Maximum Climbing Ability | 31% |
| Turning Radius | 95.3 in (2.42 m) |
| Tilt (forward/back) | 5.0/8.0 degrees |
Dimensions 7 specs
| Cab height | h |
|---|---|
| Overall Length to Fork Face | 105 in (2,675 mm) |
| Overall Width | 46.46 in (1,180 mm) |
| Height to Top of Overhead Guard | 85.4 in (2,170 mm) |
| Lifting Height | 10.6 ft (3.23 m) |
| Wheelbase | 75 in (1,905 mm) |
| Load Center | 20 in (500 mm) |
Weight 1 spec
| Operating Weight | 7,839 lb (3,556 kg) |
|---|
Power / Engine 4 specs
| Engine Type | G2.2 L3 |
|---|---|
| Engine Power | 49 hp (36.4 kW) |
| Displacement | 2.194 L |
| Number of Cylinders | 3 |
Hydraulics / Fluids 1 spec
| Rear Tire Size | 6.50-10 |
|---|
