Forklift · Linde

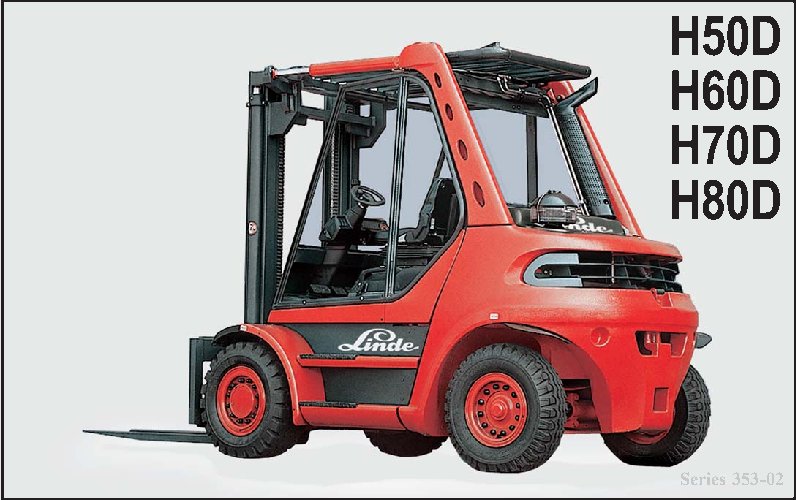

Linde H60D Specs
Quick-reference specifications for the Linde H60D forklift, taken from the manufacturer’s spec sheet.
- Weight
- 21,054 lb9,550 kg
- Gradeability, With/Without Load
- 35/27 %
Performance 12 specs
| Load Capacity | 13,000 lb (6,000 kg) |
|---|---|
| Load Center | 24 in (600 mm) |
| Tires F/R | P/P |
| Steering | Power |
| ForkDimensionstxlxw | 2.5x48x6 in (64×1,219×152 mm) |
| Turning Radius | 120.5 in (3,060 mm) |
| Lowering Speed, With/Without Load | 98.4/98.4 fpm (0.50/0.50 mph) |
| Gradeability, With/Without Load | 35/27 % |
| Brake System | Dynamic/Hydraulic |
| Parking Brake | Foot |
| Noise Level | 78 dBa |
| Speed Control | Infinitely Variable |
Dimensions 10 specs
| Fork Carriage, Class/Width | lV/70.9 in (lV/1,800 mm) |
|---|---|
| Total Length to Forkface | 133.5 in (3,390 mm) |
| Overall Width, Front | 75.5/87.8 in (1,918/2,230 mm) |
| Front Overhang | 23.2 in (590 mm) |
| Truck Height Including Overhead Guard | 106.9 in (2,714 mm) |
| Seat Height | 56.4 in (1,432 mm) |
| Aisle Width | 143.5 in (3,645 mm) |
| Tire Size, Front | 355/65-15/24PR |
| Tire Size, Rear | 8.25-15/18PR |
| Track Width Center Line of Tires, F/R | 61.6/63 in (1,564/1,600 mm) |
Weight 3 specs
| Weight | 21,054 lb (9,550 kg) |
|---|---|
| Axle Loading, With Load, Front/Rear | 30,357/3,924 lb (13,770/1,780 kg) |
| Axle Loading, Without Load, Front/Rear | 9,855/11,200 lb (4,470/5,080 kg) |
Power / Engine 4 specs
| Voltage | 12 v |
|---|---|
| Engine Manufacturer/Type | KHD/BF6M1012E |
| Engine RPM | 2,200 max. rpm |
| Transmission | Hydrostatic |
Hydraulics / Fluids 1 spec
| Hydraulic System Operating Pressure | 3,771 psi (260 bar) |
|---|
