Forklift · Linde

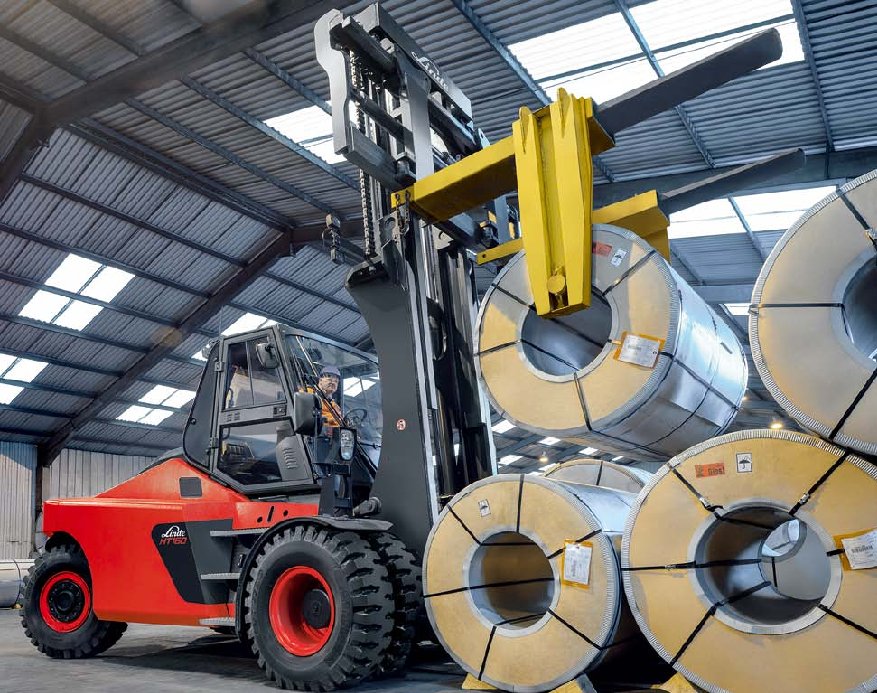

Linde HT120DS-600 Specs
Quick-reference specifications for the Linde HT120DS-600 forklift, from the manufacturer’s spec sheet and published specifications.
- Capacity
- 10000 – 18000 kg
Performance 7 specs
| Capacity | 10000 – 18000 kg |
|---|---|
| Load Capacity | 26,455 lb (12,000 kg) |
| Load Center | 23.62 in (600 mm) |
| Travel Speed (Forward/Reverse) | Full Load | 17.15 mph |
| Lifting Speed | Full Load | 78.74 fpm |
| Lowering Speed | Full Load | 88.58 fpm |
| Turning Radius (outside) | 161.5 in (4.1 m) |
Dimensions 3 specs
| Fork Spread (Outside) | 24.02 in |
|---|---|
| Overall Width | 100.98 in (2,563 mm) |
| Length to Fork Face | 193.54 in (4,914 mm) |
Power / Engine 2 specs
| Engine Make/Model | Mercedes-Benz OM934 or Cummins QSB 6.7 |
|---|---|
| Hydraulic Capacity | 210 liter |
