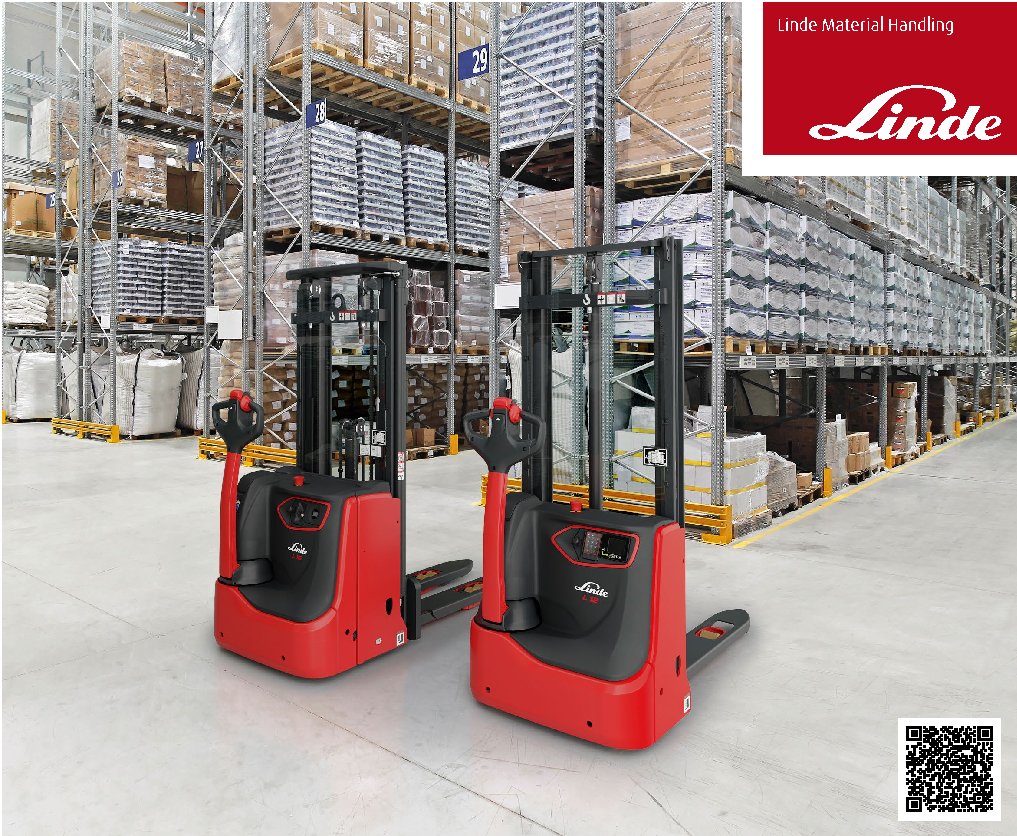

Linde L10B Specs

Quick-reference specifications for the Linde L10B forklift, taken from the manufacturer’s spec sheet.

Performance 13 specs

Rated capacity/rated load Q	1.0 t
Tyres	Polyurethane
Height drawbar in operating position min./max. h	856/1220 mm
Turning radius Wa	1420 mm
Travel speed, laden/unladen	6/6 km/h
Lifting speed, laden/unladen	0.18/0.32 m/s
Lowering speed, laden/unladen	0.42/0.36 m/s
Max. gradeability, laden/unladen	5.0/10.0 %
Service brake	Electromagnetic
Drive motor rating S2 60 min	1.1 kW
Lift motor rating at S3 15%	3/11% kW
Type of drive unit	AC control
Sound pressure level LpAZ (at the operator’s seat)	<70 dB (A)

Load centre distance c	600 mm
Load distance, centre of drive axle to fork x	695 mm
Wheelbase y	1123 mm
Tyre size, front	Ø 230 × 75
Tyre size, rear	2x Ø 85 × 85
Additional wheels (dimensions)	Ø 140 × 54
Mast height, lowered h	1940 mm
Free lift h	150 mm
Lift h	2924 mm
Mast height, extended h	3402 mm
Height of wheel arms h	80 mm
Height, lowered h	86 mm
Overall length l	1738 mm
Length to fork face l	588 mm
Overall width b1/b	800 mm
Fork dimensions DIN ISO 2331 s/e/l	65/180/1150 mm
Fork carriage width b	533 mm
Fork spread b	560 mm
Ground clearance, centre of wheelbase m	27 mm
Aisle width for pallets 1000 × 1200 crossways Ast	2293 mm
Aisle width for pallets 800 × 1200 lengthways Ast	2264 mm

Service weight	657 kg
Axle loading, laden front/rear	558/1099 kg
Axle loading, unladen front/rear	473/184 kg

Battery voltage/nominal capacity K5	24 V
Battery energy content	3/3.6 kWh
Battery weight	21 kg
