Forklift · Linde

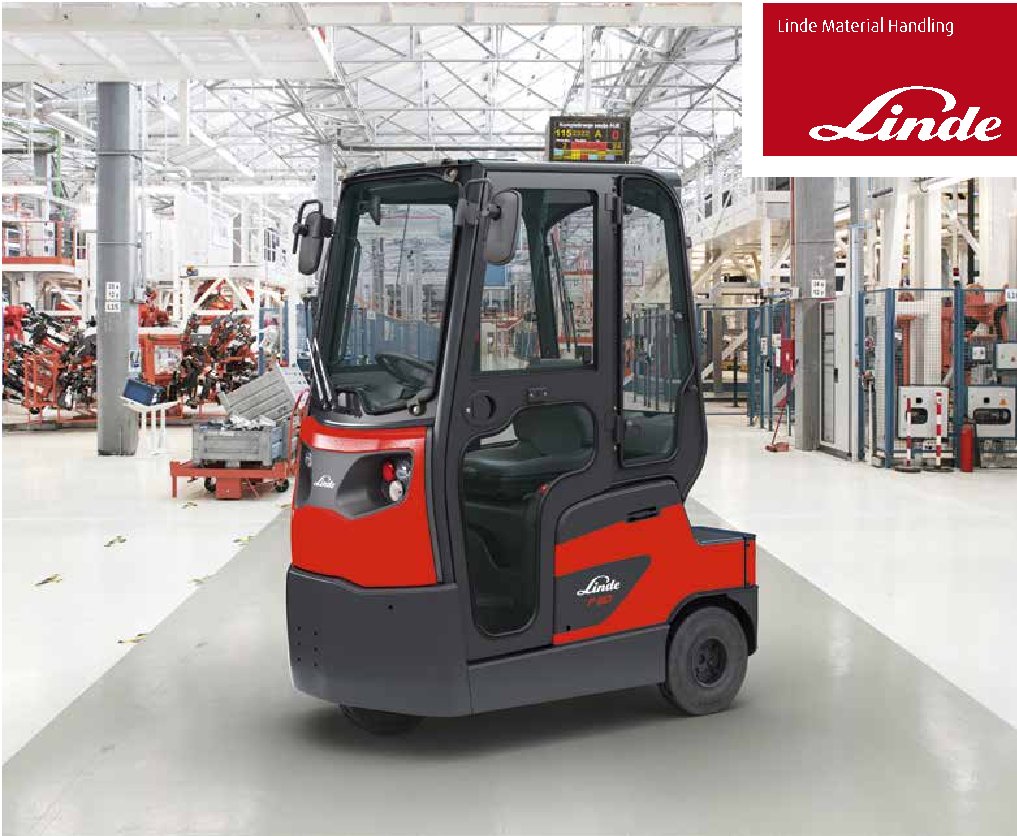

Linde P60 Specs
Quick-reference specifications for the Linde P60 forklift, taken from the manufacturer’s spec sheet.
- Platform height, unladen
- 645 mm
Performance 8 specs
| Load capacity/ Load | 0.15 /6.0 t |
|---|---|
| Turning radius | 1650 mm |
| Travel speed, with/without load | 12 / 20 km/h |
| Tractive force, with/without load | 1200 N |
| Maximum tractive force, with/without load | 6500 N |
| Service brake | Electric /hydraulic |
| Drive motor rating S2 60 min | 4.5 (AC) kW |
| Sound pressure level LpAZ (at the driver’s seat) | 60 dB (A) |
Dimensions 12 specs
| Wheelbase | 1190 mm |
|---|---|
| Track width, rear | 860 mm |
| Seat height relating to SIP/ stand height | 1020 mm |
| Towing coupling height | 285, 340, 395 mm |
| Platform height, unladen | 645 mm |
| Loading platform, length | 520 mm |
| Rear overhang | 350 mm |
| Loading platform, width | 900 mm |
| Overall length | 1830 mm |
| Overall width | 996 mm |
| Ground clearance, centre of wheelbase | 135 mm |
| Minimum pivoting point distance | 600 mm |
Weight 3 specs
| Service weight | 1260 kg |
|---|---|
| Axle load with load, front / rear | 550/860 kg |
| Axle load without load, front / rear | 550/ 710 kg |
Power / Engine 1 spec
| Battery weight | 560 kg |
|---|
