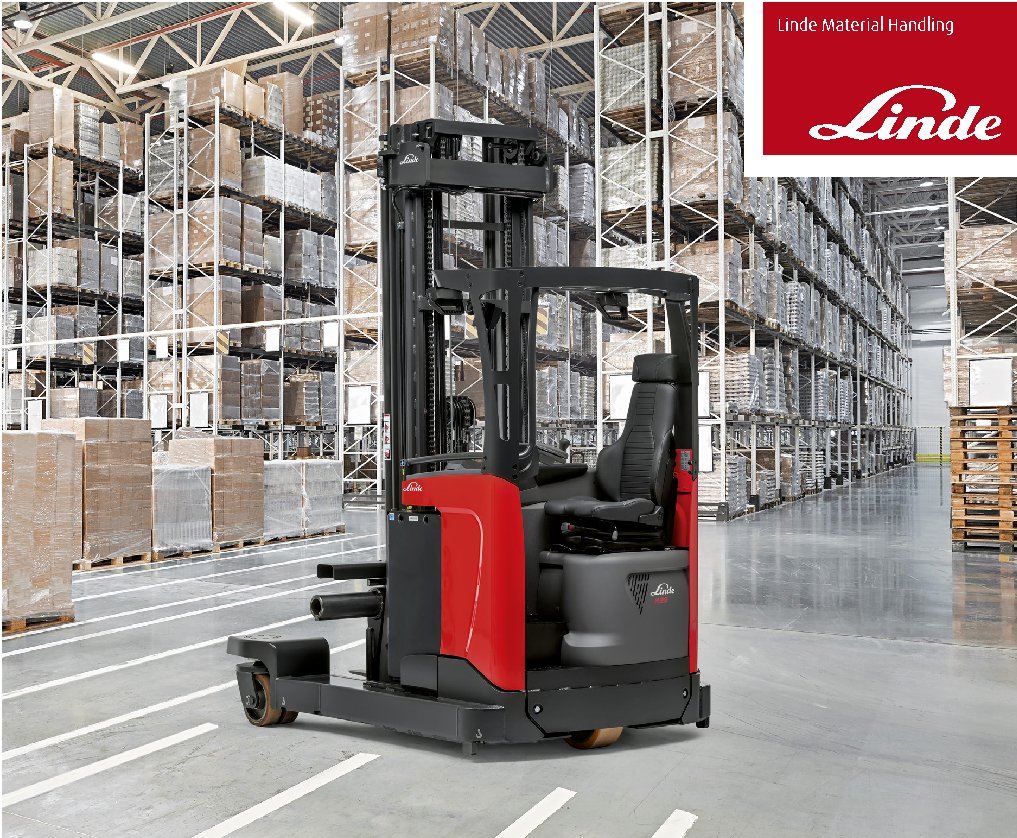

Linde R25F Specs

Quick-reference specifications for the Linde R25F forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Rated capacity/rated load Q	2.5 t
Reach distance l	782 mm
Turning radius Wa	1932 mm
Travel speed, laden/unladen	13/13 km/h
Lifting speed, laden/unladen	0.32/0.53 m/s
Lowering speed, laden/unladen	0.53/0.53 m/s
Reaching speed, laden/unladen	0.2/0.2 m/s
Max. gradeability, laden/unladen	9.0/14.0 %
Service brake	electrical/mechanical
Sound pressure level LpAZ (at the operator’s seat)	59.7 dB (A)

Load centre distance c	600 mm
Load distance, centre of drive axle to fork x	527 mm
Wheelbase y	1665 mm
Tyre size, front	Ø 355 × 155
Tyre size, rear	Ø 320 × 100/Ø 260 × 85
Mast height, lowered h	3367 mm
Free lift h	2637 mm
Lift h	7500 mm
Mast height, extended h	8250 mm
Height of overhead guard (cabin) h	2215 mm
Seat height relating to SIP/stand height h	1087 mm
Height of wheel arms h	430 mm
Height, lowered h	50 mm
Overall length l	2555 mm
Length to fork face l	1405 mm
Overall width b1/b	1744/1498 mm
Fork dimensions DIN ISO 2331 s/e/l	45/125/1150 mm
Fork carriage width b	1500/2170 mm
Fork spread b	556-1555/556-2220 mm
Distance between wheel arms/loading surfaces b	903 mm
Ground clearance, laden, below mast m	81 mm
Ground clearance, centre of wheelbase m	80 mm
Aisle width for pallets 1000 × 1200 crossways Ast	2896 mm
Aisle width for pallets 800 × 1200 lengthways Ast	2915 mm
Length across wheel arms l	2102 mm

Service weight	4960 kg
Axle loading, unladen front/rear	2880/2080 kg
Axle loading, fork advanced, laden front/rear	660/6800 kg
Axle loading, fork retracted, laden front/rear	2770/4690 kg

Drive motor rating S2 60 min	7.2 kW
Lift motor rating at S3 15%	15 kW
Battery according to DIN 43531/35/36 A, B, C, no	43 531 C
Battery weight (±5%)	892 kg
Type of drive unit	electronic/stepless

Operating pressure for attachments	150 bar
Oil flow for attachments	25 l/min
