Telehandler · Lull

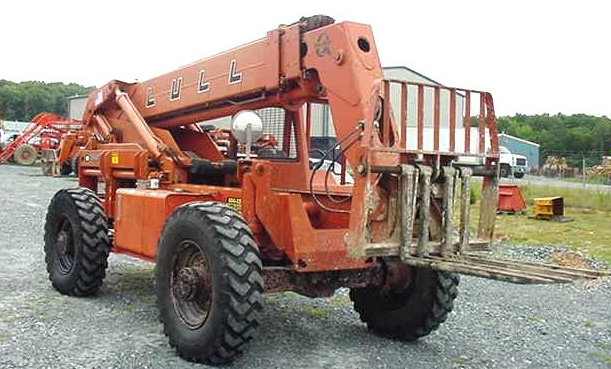

Lull 844C-42 Specs
Quick-reference specifications for the Lull 844C-42 telehandler, compiled from published specifications.
- Max Lift Capacity
- 8,000 lb3,629 kg
- Capacity at Max Forward Reach
- 500 lb226.8 kg
- Operating Weight
- 23,160 lb10,505 kg
Performance 7 specs
| Max Lift Capacity | 8,000 lb (3,629 kg) |
|---|---|
| Max Lift Height | 42 ft (12.8 m) |
| Max Forward Reach | 32 ft (9.7 m) |
| Capacity at Max Forward Reach | 500 lb (226.8 kg) |
| Max Capacity at Full Height | 6,000 lb (2,721.6 kg) |
| Frame Leveling | 12.5° L/R |
| Number of Forward Gears | 4 |
Dimensions 7 specs
| Length to Fork Face | 23 ft 7 in (7.1 m) |
|---|---|
| Overall Width | 8 ft (2.4 m) |
| Overall Height | 95 in (241.3 cm) |
| Wheelbase | 124 in (314.9 cm) |
| Ground Clearance | 16 in (40.6 cm) |
| Turning Radius Outside Tires | 13 ft 8 in (4.2 m) |
| Reach Below Grade | 23 in (58.4 cm) |
Weight 1 spec
| Operating Weight | 23,160 lb (10,505 kg) |
|---|
Power / Engine 1 spec
| Gross Power | 110 hp (82 kW) |
|---|
Hydraulics / Fluids 1 spec
| Tire Size | 13.00 x 24, 12-ply |
|---|
