Telehandler · Manitou

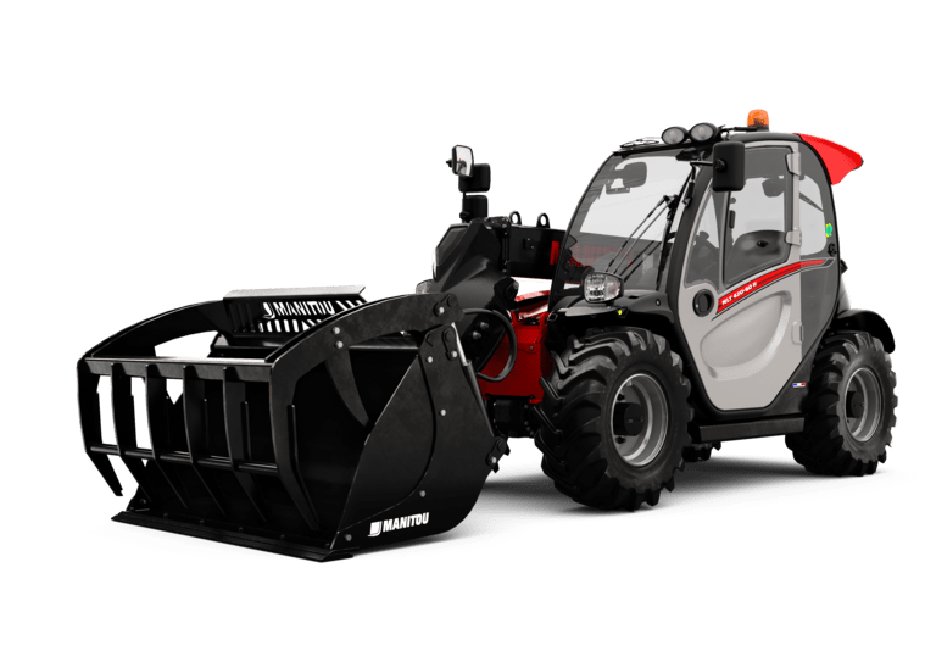

Manitou MLT420-60H Specs
Quick-reference specifications for the Manitou MLT420-60H telehandler, taken from the manufacturer’s spec sheet.
Performance 12 specs
| Max. capacity | 2000 kg |
|---|---|
| Max. outreach | 2.65 m |
| Reach at max. height | 1 m |
| Breakout force with bucket | 1886 daN |
| Tilt-down angle | 116 ° |
| Tilt-up angle | 12 ° |
| External turning radius (over tyres) | 3.06 m |
| Lifting | 5 s |
| Lowering | 3.50 s |
| Drawbar pull (Laden) | 2850 daN |
| Noise to environment (LwA) | 104 dB |
| Vibration on hands/arms | < 2.50 m/s² |
Dimensions 9 specs
| Max. lifting height | 4.35 m |
|---|---|
| Ground clearance | 0.26 m |
| Wheelbase | 2.13 m |
| Overall length to carriage (with hitch) | 3.64 m |
| Overall length to carriage (without hitch) | 3.64 m |
| Front overhang | 1.04 m |
| Overall cab width | 0.80 m |
| Overall height | 1.96 m |
| Standard tires | CAMSO – SKS532 – 12-16.5 145A2 |
Weight 1 spec
| Unladen weight (with forks) | 4190 kg |
|---|
Power / Engine 8 specs
| Engine brand | Kubota |
|---|---|
| Engine norm | Stage V |
| Engine model | V2607-CR-E5B |
| I.C. Engine power rating / Power | 57 Hp (42 kW) |
| Max. torque / Engine rotation | 174 Nm @1600 rpm |
| Engine cooling system | 2 radiators water + hydraulic oil |
| Transmission type | Hydrostatic |
| Parking brake | Automatic negative parking brake |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow – Pressure | 77 l/min – 235 bar |
| Hydraulic tank capacity | 70 l |
| Fuel tank | 60 l |
