Telehandler · Manitou

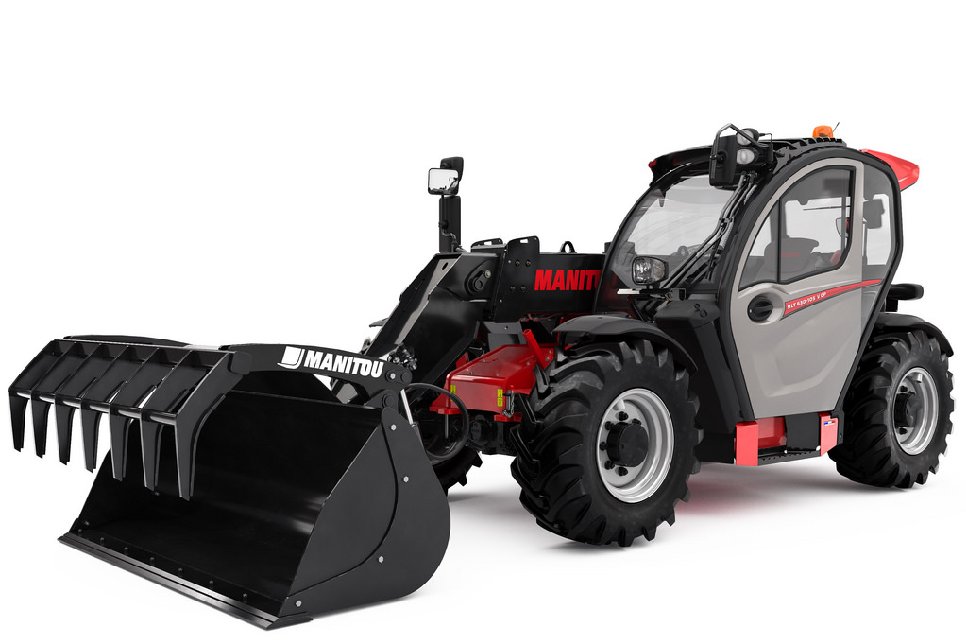

Manitou MLT630-105VCP Specs
Quick-reference specifications for the Manitou MLT630-105VCP telehandler, from the manufacturer’s spec sheet and published specifications.
- Max. Lift Capacity
- 6,614 lb3,000 kg
- Capacity at Full Forward Reach
- 1.25 tons
Performance 12 specs
| Max. Lift Capacity | 6,614 lb (3,000 kg) |
|---|---|
| Max. Lifting Height | 19 ft 8 in (6 m) |
| Max. Horizontal Reach | 11 ft 3 in (3.43 m) |
| Reach at Max Height | 2 ft 11 in (0.9 m) |
| Capacity at Full Forward Reach | 1.25 tons |
| Capacity at Full Lift Height | 2.7 tons |
| Breakout Force with Bucket | 5,840 daN |
| Lifting Time | 6.5 s |
| Lowering Time | 5 s |
| Max. Travel Speed | 23.6 mph (38 km/h) |
| Drawbar Pull (Laden) | 6,540 daN |
| External Turning Radius | 12 ft (3.65 m) |
Dimensions 9 specs
| Overall Length (with hitch hook) | 15 ft 8 in (4.78 m) |
|---|---|
| Overall Width | 6 ft 9 in (2.06 m) |
| Overall Height | 7 ft (2.14 m) |
| Wheelbase | 8 ft 10 in (2.69 m) |
| Front Overhang | 1.25 m |
| Ground Clearance | 11 in (0.28 m) |
| Tilt-Down Angle | 133° |
| Tilt-Up Angle | 13° |
| Standard Tires | Alliance A580 400/70 R20 149A8 |
Weight 1 spec
| Unladen Weight (with forks) | 14,900 lb (6,760 kg) |
|---|
Power / Engine 5 specs
| Engine Model | TCD 3.6 l |
|---|---|
| Number of Cylinders | 4 |
| Displacement | 3,621 cm³ |
| Engine Power | 101 Hp (74.4 kW) |
| Max. Torque | 410 Nm (302 ft/lb) @ 1,600 rpm |
Hydraulics / Fluids 4 specs
| Hydraulic Flow | 104 l/min |
|---|---|
| Hydraulic Pressure | 3,626 PSI (250 bar) |
| Hydraulic Tank Capacity | 24.8 US gal (94 l) |
| Fuel Tank Capacity | 20.6 US gal (78 l) |
