Telehandler · Manitou

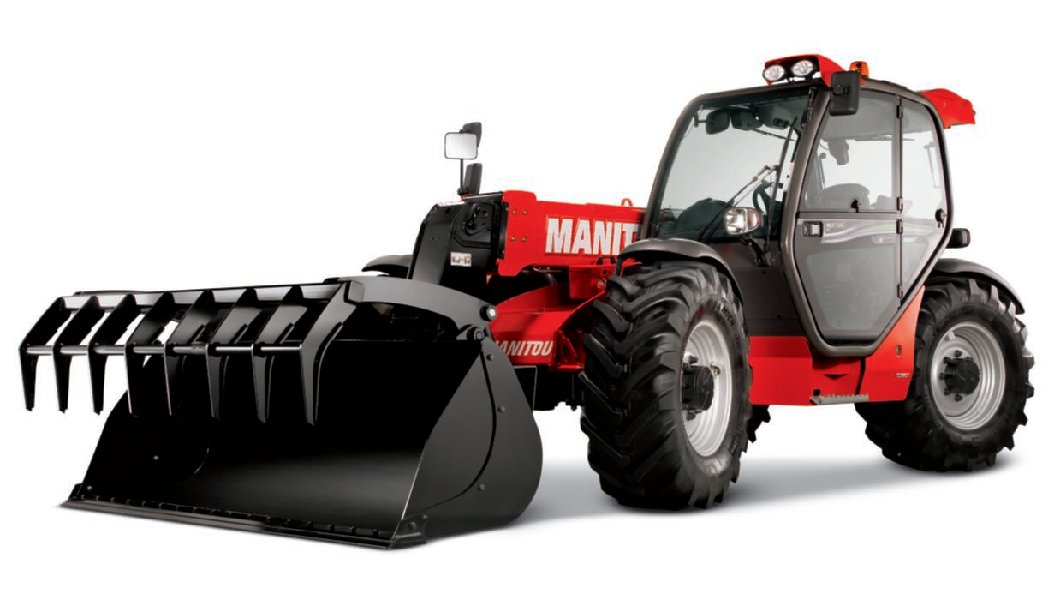

Manitou MLT634-120 PS Specs
Quick-reference specifications for the Manitou MLT634-120 PS telehandler, taken from the manufacturer’s spec sheet.
Performance 5 specs
| Max. capacity | 3400 kg |
|---|---|
| Max. outreach | 3.25 m |
| Reach at max. height | 0.75 m |
| Laden drawbar pull | 8150 daN |
| Turning radius (over tyres) | 3.77 m |
Dimensions 8 specs
| Max. lifting height | 6.05 m |
|---|---|
| Ground clearance | 0.44 m |
| Overall length to carriage | 4.58 m |
| Wheelbase | 2.56 m |
| Overall width of cab | 0.98 m |
| Overall width | 2.4 m |
| Overall height | 2.35 m |
| Standard forks (length x width x thickness) | 1200 x 125 x 50 mm |
Weight 1 spec
| Unladen weight (with forks) | 7340 kg |
|---|
Power / Engine 4 specs
| Engine | DEUTZ STAGE IIIB |
|---|---|
| Power | 122 HP – (90 kW) |
| Max. torque | 465 Nm@1600 rpm |
| Fuel | 120 l |
Hydraulics / Fluids 2 specs
| Pump | 150 l/min – 270 bar |
|---|---|
| Hydraulic oil | 135 l |
